MAX22246CAWA+ - Analog Devices

Description: Reinforced, Fast, Low-Power, Two-Channel Digital Isolators, 8-Wide-SOIC

Download MAX22246CAWA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

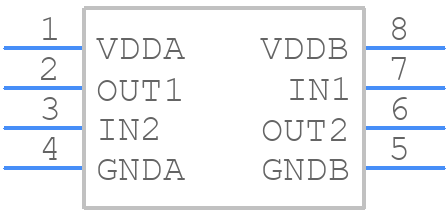

MAX22246CAWA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX22246CAWA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - W8MS+5-2
click to zoom
3D Models
MAX22246CAWA+ - Analog Devices - 3D model - Small Outline Packages - W8MS+5-2
click to zoom

MAX22246CAWA+ Details

  • Manufacturer Part Number:

    MAX22246CAWA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_W-300_MIL

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-09-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.85 mm

MAX22246CAWA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX22246CAWA+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper power-up and power-down of the MAX22246CAWA+, it's essential to follow a controlled power-up sequence. The device should be powered up in the following order: VCC, VIN, and then EN. During power-down, the sequence should be reversed. Additionally, the power supplies should be ramped up and down slowly to prevent voltage spikes and ensure a clean shutdown.
  • The MAX22246CAWA+ has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to keep the device within its recommended operating temperature range. This can be achieved by providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. The thermal resistance of the package should also be considered when designing the system.
  • To troubleshoot issues with the MAX22246CAWA+, start by verifying the power supply voltages and ensuring that the device is properly powered up. Check the input and output signals using an oscilloscope to identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting common issues. If the problem persists, contact Analog Devices Inc. support for further assistance.
  • Yes, the MAX22246CAWA+ is a high-frequency device and requires careful consideration of EMI/EMC. To minimize EMI, use a shielded enclosure, keep the device away from antennas and other EMI sources, and use EMI filters on the input and output lines. Additionally, follow good PCB layout practices, such as using a solid ground plane and minimizing loop areas.
