MAX22246CAWA/V+ - Analog Devices

Description: Digital Isolators Reinforced, Fast, Low-power 2-Channel Digital Galvanic Isolator

Download MAX22246CAWA/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

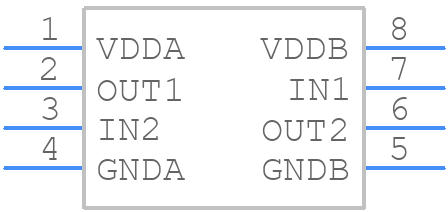

Symbol
MAX22246CAWA/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX22246CAWA/V+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - W8MS+5
click to zoom
3D Models
MAX22246CAWA/V+ - Analog Devices - 3D model - Small Outline Packages - W8MS+5
click to zoom

MAX22246CAWA/V+ Details

  • Manufacturer Part Number:

    MAX22246CAWA/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_W-300_MIL

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-09-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.85 mm

MAX22246CAWA/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX22246CAWA/V+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure proper powering and bypassing of the MAX22246CAWA/V+, use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) between the VIN pin and GND, and a smaller capacitor (e.g., 100nF ceramic) between the VCC pin and GND. Place these capacitors as close to the device as possible.
  • The MAX22246CAWA/V+ has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX22246CAWA/V+, start by checking the power supply and input voltage, ensuring they are within the recommended range. Then, verify the output voltage and current, and check for any signs of overheating or physical damage. Use an oscilloscope to analyze the output waveform and identify any anomalies.
  • Yes, the MAX22246CAWA/V+ is suitable for high-reliability and safety-critical applications. It has a high MTBF (mean time between failures) and is designed to meet the requirements of various safety standards, such as IEC 61508 and ISO 26262. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific requirements of the application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX22246CAWA/V+ Overview

Use the download button to access the MAX22246CAWA/V+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX22, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
