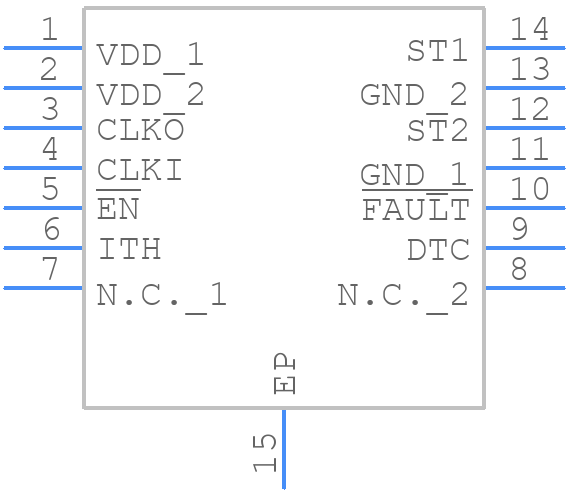

MAX22258AUD+ - Analog Devices

MAX22258AUD+ Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the MAX22258AUD+ to minimize noise and ensure optimal performance?
  A good PCB layout for the MAX22258AUD+ involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
• How do I select the correct input and output capacitors for the MAX22258AUD+?
  Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating to minimize voltage drops and ensure stable operation. For output capacitors, select ones with low ESR and high capacitance to filter out high-frequency noise and ensure stable output voltage.
• What is the maximum ambient temperature range for the MAX22258AUD+?
  The MAX22258AUD+ is rated for operation from -40°C to +125°C ambient temperature range. However, the device's performance and reliability may degrade at extreme temperatures, so it's essential to ensure proper thermal management and heat dissipation in your design.
• Can I use the MAX22258AUD+ in a high-reliability or automotive application?
  Yes, the MAX22258AUD+ is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure you follow the recommended design and layout guidelines, and perform thorough testing and validation to meet the specific requirements of your application.
• How do I troubleshoot common issues with the MAX22258AUD+, such as output voltage instability or overheating?
  To troubleshoot issues with the MAX22258AUD+, start by checking the input voltage, output load, and PCB layout for any errors or inconsistencies. Use an oscilloscope to monitor the output voltage and current, and check for any signs of overheating or thermal shutdown. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
