MAX22344CAAP+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX22344CAAP+ - DIGITAL ISOLATOR, 4CH, -40 TO 125DEG C

Download MAX22344CAAP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

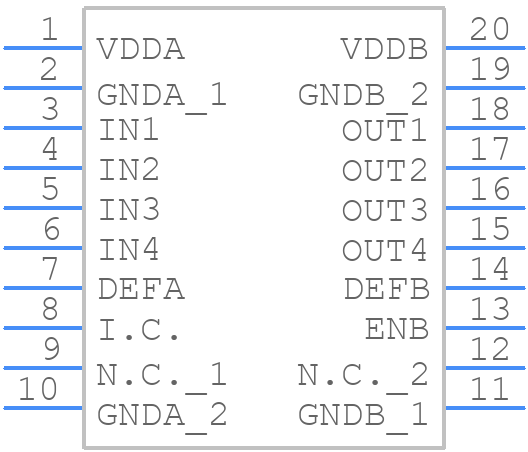

MAX22344CAAP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX22344CAAP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX22344CAAP+
click to zoom
3D Models
MAX22344CAAP+ - Analog Devices - 3D model - Small Outline Packages - MAX22344CAAP+
click to zoom

MAX22344CAAP+ Details

  • Manufacturer Part Number:

    MAX22344CAAP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-SSOP-5.30_MM

  • Package Description:

    SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-SSOP-5.30_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-12-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.99 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX22344CAAP+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX22344CAAP+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it's recommended to use a common-mode filter and to decouple the power supply pins with capacitors.
  • To optimize the performance of the MAX22344CAAP+ in noisy environments, it's recommended to use shielding, filtering, and grounding techniques. Additionally, using a common-mode filter and a ferrite bead on the power supply lines can help to reduce noise and improve performance.
  • The maximum operating temperature range for the MAX22344CAAP+ is -40°C to +125°C. However, it's recommended to operate the device within the specified temperature range for optimal performance and reliability.
  • To troubleshoot issues with the MAX22344CAAP+, it's recommended to check the power supply voltage, signal integrity, and PCB layout. Additionally, using an oscilloscope and a logic analyzer can help to identify issues with the device. It's also recommended to consult the datasheet and application notes for troubleshooting guidelines.
  • The recommended power-up sequence for the MAX22344CAAP+ is to power up the device in the following order: VCC, VDD, and then the input signals. This helps to ensure that the device powers up correctly and reduces the risk of damage or malfunction.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX22344CAAP+ Overview

Use the download button to access the MAX22344CAAP+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX22, or try a keyword search, such as Other Interface ICs
