MAX22445FAWE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX22445FAWE+ - Digital Isolator, 4 Channel, 12 ns, 1.71 V, 5.5 V, WSOIC, 16 Pins

Download MAX22445FAWE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

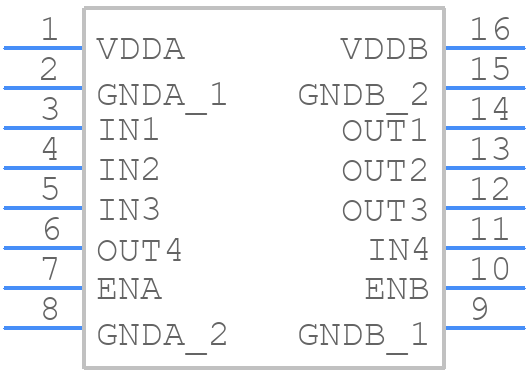

Symbol
MAX22445FAWE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX22445FAWE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Wide SOIC
click to zoom
3D Models
MAX22445FAWE+ - Analog Devices - 3D model - Small Outline Packages - 16 Wide SOIC
click to zoom

MAX22445FAWE+ Details

  • Manufacturer Part Number:

    MAX22445FAWE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_W-300_MIL

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-06-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MAX22445FAWE+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX22445FAWE+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it's recommended to use a common-mode filter and to decouple the power supply pins with capacitors.
  • To optimize the performance of the MAX22445FAWE+ in a noisy environment, it's recommended to use shielding, filtering, and grounding techniques. Additionally, using a common-mode filter and a ferrite bead can help to reduce electromagnetic interference (EMI).
  • The maximum operating temperature range for the MAX22445FAWE+ is -40°C to +125°C. However, it's recommended to operate the device within the specified temperature range for optimal performance and reliability.
  • To troubleshoot issues with the MAX22445FAWE+, it's recommended to check the power supply voltage, signal integrity, and PCB layout. Additionally, using an oscilloscope and a logic analyzer can help to identify issues with the device's operation.
  • Yes, the MAX22445FAWE+ is compatible with lead-free soldering. However, it's recommended to follow the manufacturer's guidelines for lead-free soldering to ensure reliable operation and to prevent damage to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX22445FAWE+ Overview

Use the download button to access the MAX22445FAWE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX22, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
