MAX22514ATG+ - Analog Devices

Description: Surge Protected IO-Link Device Transceiver with DC/DC

Download MAX22514ATG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

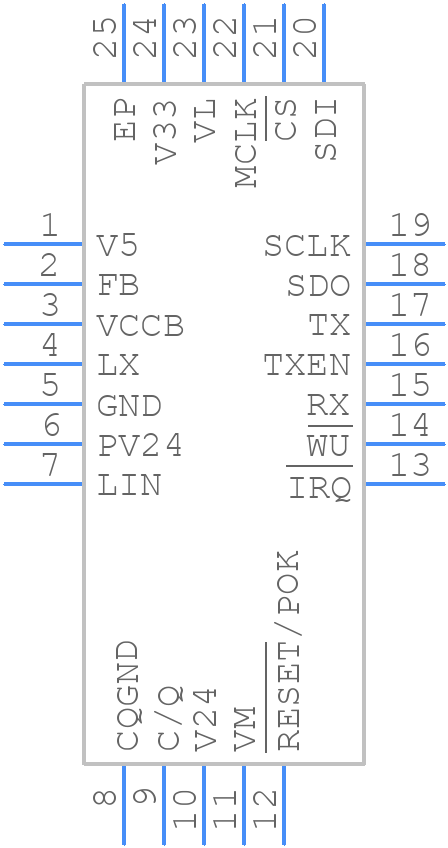

MAX22514ATG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX22514ATG+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2445+2C
click to zoom
3D Models
MAX22514ATG+ - Analog Devices - 3D model - Quad Flat No-Lead - T2445+2C
click to zoom

MAX22514ATG+ Details

  • Manufacturer Part Number:

    MAX22514ATG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X5X0.75

  • Package Description:

    TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2022-02-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    IO-LINK TRANSCEIVER

  • JESD-30 Code:

    R-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX22514ATG+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX22514ATG+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to place it as close as possible to the pin.
  • To ensure proper power-up and power-down of the MAX22514ATG+, it's recommended to follow a specific power-up sequence. First, power up the VCC pin, then the EN pin, and finally the input signals. During power-down, reverse the sequence. Additionally, make sure to add a power-on reset circuit to ensure the device is properly reset during power-up.
  • The maximum operating temperature range for the MAX22514ATG+ is -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX22514ATG+, start by checking the power supply and ensuring it's within the recommended range. Then, verify that the input signals are within the specified range and that the device is properly configured. Use an oscilloscope to check the output signals and look for any signs of oscillation or instability. Finally, consult the datasheet and application notes for specific troubleshooting guidelines.
  • Yes, the MAX22514ATG+ is suitable for use in high-reliability and safety-critical applications. However, it's essential to follow proper design and testing procedures to ensure the device meets the required safety and reliability standards. Additionally, consult with Analog Devices Inc. for specific guidance on using the MAX22514ATG+ in such applications.
