MAX22702EASA+T - Analog Devices

Description: Ultra-High CMTI Isolated Gate Drivers

Download MAX22702EASA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

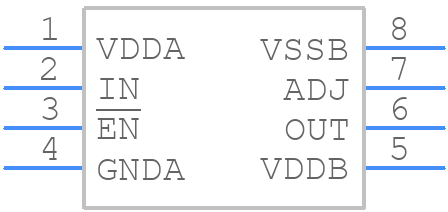

MAX22702EASA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX22702EASA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8MS+23
click to zoom
3D Models
MAX22702EASA+T - Analog Devices - 3D model - Small Outline Packages - S8MS+23
click to zoom

MAX22702EASA+T Details

  • Manufacturer Part Number:

    MAX22702EASA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-11-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    5.7 A

  • Output Polarity:

    TRUE AND INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    28 V

  • Supply Voltage1-Min:

    6 V

  • Supply Voltage1-Nom:

    20 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.039 µs

  • Turn-on Time:

    0.039 µs

  • Width:

    3.9 mm

MAX22702EASA+T Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX22702EASA+T is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it's recommended to use a common-mode choke and a shielded cable for the RF input.
  • To optimize the performance of the MAX22702EASA+T, you should consider factors such as the input signal level, the frequency range of interest, and the desired output signal quality. You may need to adjust the gain and bandwidth settings, as well as the input and output impedance matching. It's also recommended to consult the application notes and evaluation boards provided by Analog Devices Inc.
  • The maximum operating temperature range for the MAX22702EASA+T is -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To ensure EMC with the MAX22702EASA+T, you should follow proper PCB design and layout practices, such as using a solid ground plane, keeping sensitive signals away from the edges of the board, and using shielding and filtering components as needed. Additionally, you should ensure that the device is properly decoupled and that the power supply is clean and stable.
  • The recommended power supply voltage for the MAX22702EASA+T is 3.3V or 5V, and the recommended current is 150mA or 300mA, depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more detailed information.
