MAX22707AUB+ - Analog Devices

Description: Low Power, Integrated Zero Crossing Detector with ?1% Accuracy

Download MAX22707AUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

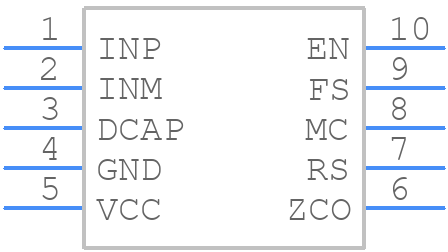

MAX22707AUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX22707AUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0061 10 Pin uMax
click to zoom
3D Models
MAX22707AUB+ - Analog Devices - 3D model - Small Outline Packages - 21-0061 10 Pin uMax
click to zoom

MAX22707AUB+ Details

  • Manufacturer Part Number:

    MAX22707AUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2022-01-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX22707AUB+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX22707AUB+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it's recommended to use a common-mode filter and to decouple the power supply pins with capacitors.
  • To optimize the performance of the MAX22707AUB+ in a noisy environment, it's recommended to use shielding, filtering, and grounding techniques. Additionally, using a common-mode filter and a low-pass filter can help to reduce noise and improve signal integrity.
  • The maximum operating temperature range for the MAX22707AUB+ is -40°C to +125°C. However, it's recommended to operate the device within the specified temperature range for optimal performance and reliability.
  • To troubleshoot issues with the MAX22707AUB+, it's recommended to check the power supply voltage, signal integrity, and PCB layout. Additionally, using an oscilloscope and a logic analyzer can help to identify issues with the device.
  • Yes, the MAX22707AUB+ is AEC-Q100 qualified and can be used in automotive applications. However, it's recommended to follow the guidelines and requirements for automotive applications, such as meeting the ISO 26262 standard for functional safety.
