MAX2472EUT+T - Analog Devices

Description: 500MHz to 2500MHz, VCO Buffer Amplifiers

Download MAX2472EUT+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

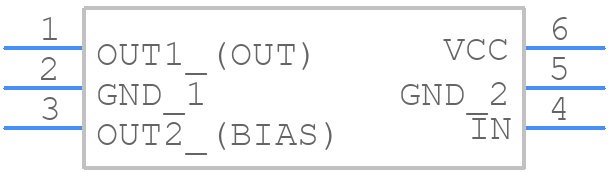

MAX2472EUT+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX2472EUT+T - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - MAX2472EUT+T
click to zoom
3D Models
MAX2472EUT+T - Analog Devices - 3D model - SOT23 (6-Pin) - MAX2472EUT+T
click to zoom

MAX2472EUT+T Details

  • Manufacturer Part Number:

    MAX2472EUT+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    6-SOT_23-N/A

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    1999-06-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Characteristic Impedance:

    50 Ω

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Terminal Finish:

    Matte Tin (Sn) - annealed
