MAX25014ATG/VY+ - Analog Devices

Description: Automotive Low Input Voltage I2C 4-Channel 150mA Backlight Driver

Download MAX25014ATG/VY+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

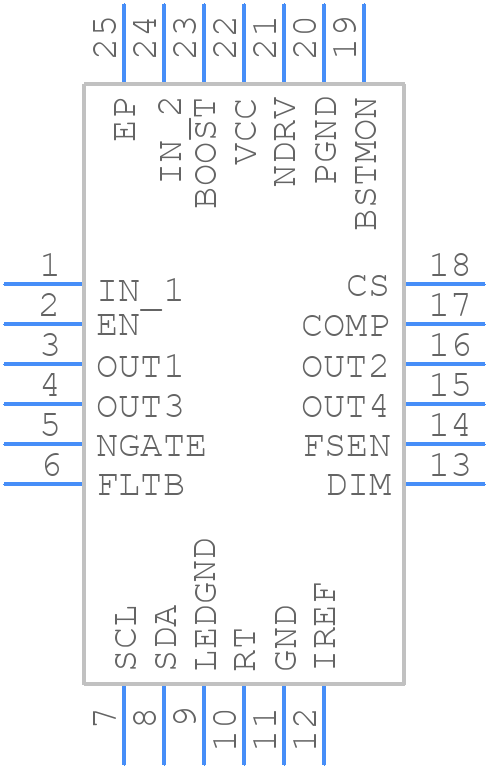

MAX25014ATG/VY+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX25014ATG/VY+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2444+4C
click to zoom
3D Models
MAX25014ATG/VY+ - Analog Devices - 3D model - Quad Flat No-Lead - T2444+4C
click to zoom

MAX25014ATG/VY+ Details

  • Manufacturer Part Number:

    MAX25014ATG/VY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP_SS-4X4X0.75

  • Package Description:

    TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP_SS-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-07-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    8

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.13SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • fmax-Min:

    0.0002 MHz

MAX25014ATG/VY+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX25014ATG/VY+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it's recommended to use a common mode choke and a pi-filter to reduce EMI emissions.
  • To optimize the performance of the MAX25014ATG/VY+ in a noisy environment, it's recommended to use a shielded enclosure, to keep the device away from noise sources, and to use a low-pass filter on the input signals. Additionally, the device's internal filtering and gain settings can be adjusted to optimize performance in the specific noise environment.
  • The maximum operating temperature range for the MAX25014ATG/VY+ is -40°C to +125°C, but the device's performance may degrade at temperatures above 85°C. It's recommended to use a heat sink or a thermal management system to keep the device within its recommended operating temperature range.
  • To troubleshoot issues with the MAX25014ATG/VY+, it's recommended to use a logic analyzer or an oscilloscope to monitor the device's input and output signals. Additionally, the device's internal registers can be accessed to check for errors or faults. The device's datasheet and application notes provide detailed troubleshooting guidelines.
  • Yes, the MAX25014ATG/VY+ can be used in a redundant or fault-tolerant system. The device has built-in error detection and correction mechanisms, and its internal registers can be accessed to check for errors or faults. Additionally, the device's output signals can be duplicated and compared to detect faults or errors.
