A good PCB layout for the MAX25201ATEA/VY+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power source and load.
To ensure proper power-up and configuration, it's recommended to follow a specific power-up sequence, which involves applying the power supply voltage (VCC) before the input voltage (VIN). Additionally, the device should be configured in a specific order, such as setting the output voltage, enabling the output, and then applying the input voltage.
The MAX25201ATEA/VY+ has a maximum junction temperature of 150°C. To prevent overheating, it's recommended to provide adequate heat sinking, such as using a thermal pad or a heat sink, and to ensure good airflow around the device. Additionally, the device should be operated within its recommended operating conditions, and the output current should be limited to prevent excessive heat generation.
To troubleshoot issues with the MAX25201ATEA/VY+, it's recommended to follow a systematic approach, starting with checking the power supply voltage, input voltage, and output voltage. Then, verify the device configuration and settings, and check for any signs of overheating or physical damage. If the issue persists, consult the datasheet and application notes, or contact Analog Devices Inc support for further assistance.
The MAX25201ATEA/VY+ is designed to meet EMI/EMC regulatory standards, but it's still important to follow good design practices, such as using a shielded enclosure, minimizing loop areas, and using EMI filters. Additionally, it's recommended to follow the guidelines provided in the datasheet and application notes, and to consult with EMI/EMC experts if necessary.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAX25201ATEA/VY+ Overview

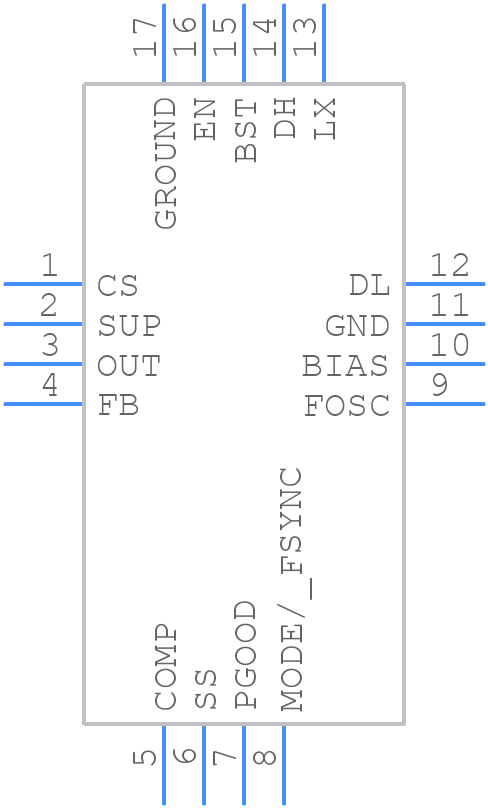

Use the download button to access the MAX25201ATEA/VY+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX25,
or try a keyword search, such as Switching Regulator or Controllers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
