A good PCB layout for the MAX25207ATPA/VY+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power source and load.
To ensure proper power-up and configuration, it's recommended to follow a specific power-up sequence, which involves applying the power supply voltage (VCC) before the input voltage (VIN). Additionally, the device should be configured in a specific order, such as setting the output voltage, enabling the output, and then applying the input voltage.
The MAX25207ATPA/VY+ has a maximum junction temperature of 150°C. To prevent overheating, it's recommended to provide adequate heat sinking, such as using a thermal pad or a heat sink, and to ensure good airflow around the device. Additionally, the device should be operated within its recommended operating conditions, and the output current should be limited to prevent excessive power dissipation.
To troubleshoot issues with the MAX25207ATPA/VY+, it's recommended to follow a systematic approach, such as checking the power supply voltage, input voltage, and output voltage using an oscilloscope or multimeter. Additionally, checking the device's configuration and settings, such as the output voltage setting and enable pin, can help identify the root cause of the issue.
The MAX25207ATPA/VY+ is designed to meet EMI/EMC regulatory standards, but it's still important to follow good design practices, such as using a shielded enclosure, minimizing loop areas, and using EMI filters or chokes. Additionally, it's recommended to perform EMI/EMC testing and compliance verification to ensure the device meets regulatory standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAX25207ATPA/VY+ Overview

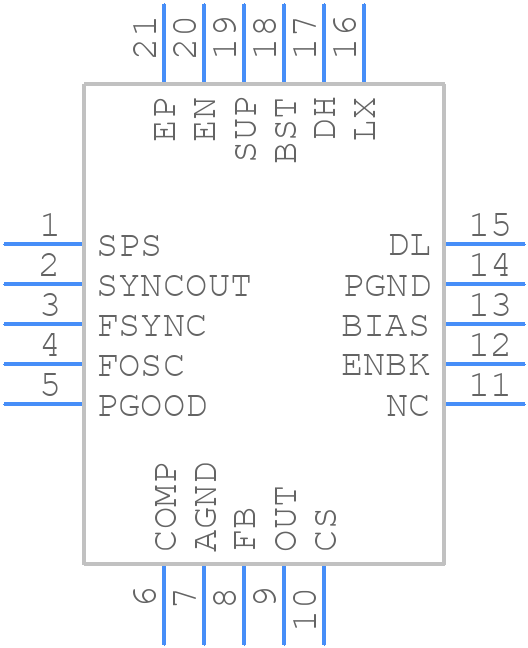

Use the download button to access the MAX25207ATPA/VY+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX25,
or try a keyword search, such as Switching Regulator or Controllers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
