Part Image

MAX25256ATBA/V+ - Analog Devices

Description: Gate Drivers 36V H-Bridge Transformer Driver for Isolated Supplies

Download MAX25256ATBA/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

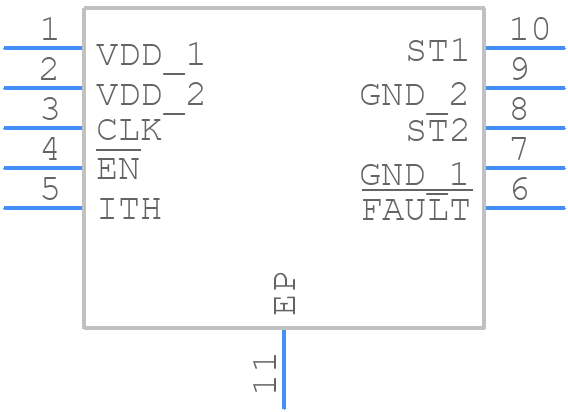

Symbol
MAX25256ATBA/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX25256ATBA/V+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1033+1C
click to zoom
3D Models
MAX25256ATBA/V+ - Analog Devices - 3D model - Small Outline No-lead - T1033+1C
click to zoom

MAX25256ATBA/V+ Details

  • Manufacturer Part Number:

    MAX25256ATBA/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X3X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2021-09-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX25256ATBA/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX25256ATBA/V+ to achieve optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device.
  • To ensure proper power and biasing, make sure to follow the recommended power supply voltage range (1.71V to 3.6V) and decoupling capacitor values (10nF to 100nF). Also, ensure that the input voltage (VIN) is within the specified range and that the device is properly biased by connecting the VBIAS pin to a stable voltage source.
  • The MAX25256ATBA/V+ can support data rates up to 100Mbps, making it suitable for high-speed applications such as USB, SATA, and PCIe.
  • To troubleshoot issues with the MAX25256ATBA/V+, start by checking the power supply voltage, input signal integrity, and output signal quality. Use oscilloscopes and logic analyzers to debug the signal waveforms and timing. Also, consult the datasheet and application notes for guidance on troubleshooting common issues.
  • The MAX25256ATBA/V+ is a USB 2.0-compliant device and is compatible with other USB devices and standards. It can also be used in other high-speed applications such as SATA, PCIe, and HDMI, but may require additional circuitry and design considerations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX25256ATBA/V+ Overview

Use the download button to access the MAX25256ATBA/V+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX25, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
