MAX25262AFOB/VY+T - Analog Devices

Description: Automotive, 65V, 2A/3A Mini Buck Converter

Download MAX25262AFOB/VY+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

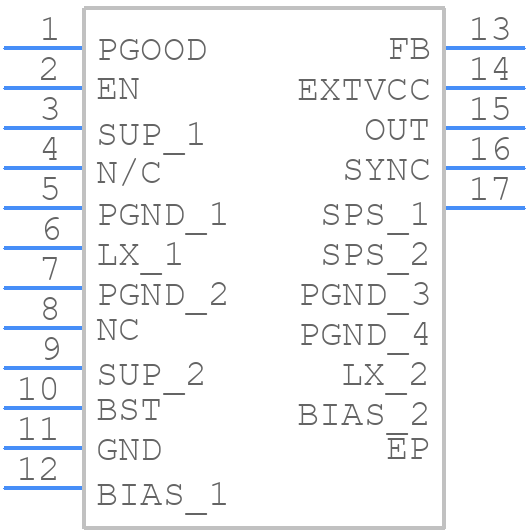

MAX25262AFOB/VY+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX25262AFOB/VY+T - Analog Devices PCB footprint - Other - Other - F173B3FY+1_24
click to zoom
3D Models
MAX25262AFOB/VY+T - Analog Devices - 3D model - Other - F173B3FY+1_24
click to zoom

MAX25262AFOB/VY+T Details

  • Manufacturer Part Number:

    MAX25262AFOB/VY+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    17-LFCSP_SS-3.5X3.5X0.75

  • Package Description:

    FCQFN-17

  • Pin Count:

    17

  • Manufacturer Package Code:

    17-LFCSP_SS-3.5X3.5X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2022-02-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    65 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XQCC-N17

  • JESD-609 Code:

    e3

  • Length:

    3.75 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    17

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    12 V

  • Output Voltage-Min:

    1 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC17,.14X.15(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.005 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2320 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

MAX25262AFOB/VY+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX25262AFOB/VY+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper power and biasing, make sure to follow the recommended power supply voltage range (3.135V to 3.465V) and decoupling capacitor values (10uF and 100nF) as specified in the datasheet. Also, ensure that the VCC pin is connected to a clean power supply and the GND pin is connected to a solid ground plane.
  • The MAX25262AFOB/VY+T can support data rates up to 100Mbps, but the actual data rate achieved will depend on the specific application, PCB layout, and signal integrity.
  • To troubleshoot issues with the MAX25262AFOB/VY+T, start by reviewing the datasheet and application notes to ensure that the device is properly configured and powered. Use oscilloscopes and logic analyzers to debug the signals and identify any issues. Also, check for any PCB layout or component issues that may be causing the problem.
  • The MAX25262AFOB/VY+T is specified to operate over a temperature range of -40°C to +125°C, but it's recommended to derate the device's performance and power consumption at higher temperatures. Consult the datasheet and application notes for more information on high-temperature operation.
