MAX25262AFOF/VY+ - Analog Devices

Description: Automotive, 65V, 2A/3A Mini Buck Converter

Download MAX25262AFOF/VY+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

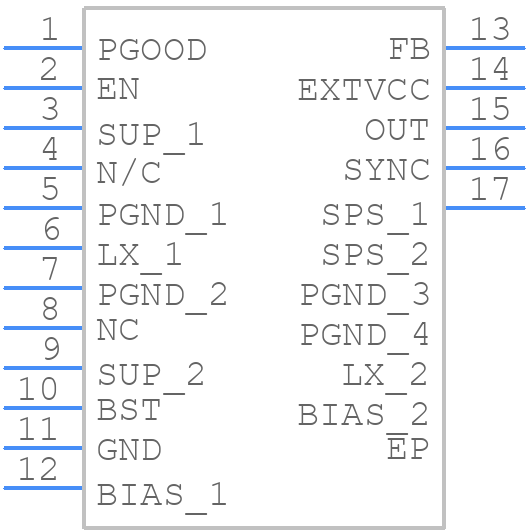

Symbol
MAX25262AFOF/VY+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX25262AFOF/VY+ - Analog Devices PCB footprint - Other - Other - F173B3FY+1_25
click to zoom
3D Models
MAX25262AFOF/VY+ - Analog Devices - 3D model - Other - F173B3FY+1_25
click to zoom

MAX25262AFOF/VY+ Details

  • Manufacturer Part Number:

    MAX25262AFOF/VY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    17-LFCSP_SS-3.5X3.5X0.75

  • Pin Count:

    17

  • Manufacturer Package Code:

    17-LFCSP_SS-3.5X3.5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2022-02-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    65 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XQCC-N17

  • JESD-609 Code:

    e3

  • Length:

    3.75 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    17

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    12 V

  • Output Voltage-Min:

    1 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC17,.13X.14(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.005 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2320 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

MAX25262AFOF/VY+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX25262AFOF/VY+ can be found in the device's evaluation kit documentation or by contacting Analog Devices' technical support. A good layout should ensure proper grounding, decoupling, and signal routing to minimize noise and ensure optimal performance.
  • To optimize the power supply design, ensure that the input voltage is within the recommended range (2.7V to 5.5V), and use a low-dropout regulator (LDO) or a switching regulator with a low noise output. Additionally, add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins to filter out noise and ripple.
  • The MAX25262AFOF/VY+ can support data rates up to 100Mbps, but the actual achievable data rate depends on the specific application, PCB layout, and signal quality. It's recommended to consult the device's datasheet and application notes for more information on data rate limitations.
  • To troubleshoot issues with the MAX25262AFOF/VY+, start by verifying the power supply and clock signals. Check for proper signal routing, decoupling, and grounding on the PCB. Use an oscilloscope to monitor the device's output signals and look for signs of noise, distortion, or signal degradation. Consult the device's datasheet and application notes for specific troubleshooting guidelines.
  • The MAX25262AFOF/VY+ is a USB 2.0 transceiver, and it's compatible with other USB 2.0 devices and standards. However, it's essential to ensure that the device is used within its specified operating conditions and that the system design meets the requirements of the USB 2.0 standard.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX25262AFOF/VY+ Overview

Use the download button to access the MAX25262AFOF/VY+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX25, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
