MAX25610AAUE/V+ - Analog Devices

Description: LED Lighting Drivers Synchronous Buck and Buck-Boost LED Driver / DC-DC Converter

Download MAX25610AAUE/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

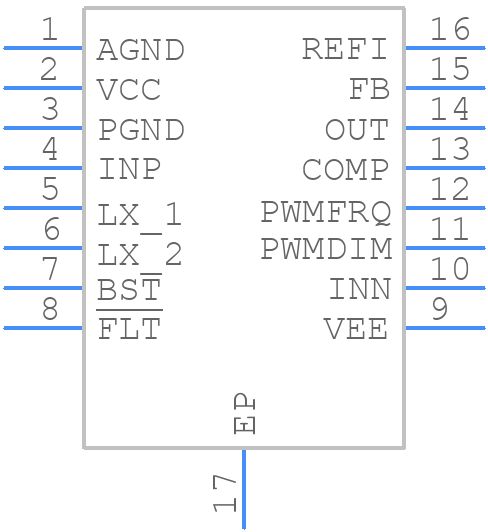

MAX25610AAUE/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

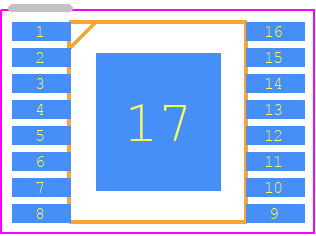

MAX25610AAUE/V+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0108
click to zoom
3D Models
MAX25610AAUE/V+ - Analog Devices - 3D model - Small Outline Packages - 21-0108
click to zoom

MAX25610AAUE/V+ Details

  • Manufacturer Part Number:

    MAX25610AAUE/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4_EP-4.4_MM

  • Package Description:

    TSSOP-14

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4_EP-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-06-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ITS OPERATING FROM 5V TO 36V WHEN EXTERNAL PWM DIMMING

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    7.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX25610AAUE/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX25610 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the power supply and another for the ground plane.
  • To ensure proper power-up and configuration, follow the recommended power-up sequence, which is to apply the power supply voltage (VCC) before the input voltage (VIN). Also, make sure to configure the device's registers according to the datasheet and application notes, and verify the device's status using the built-in diagnostic features.
  • The MAX25610 has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum power dissipation for extended periods. Also, monitor the device's temperature using the built-in thermal monitoring feature.
  • To troubleshoot issues with the MAX25610, start by reviewing the datasheet and application notes to ensure proper configuration and usage. Use the device's built-in diagnostic features, such as the error flags and status registers, to identify the source of the issue. Also, use external tools, such as oscilloscopes and logic analyzers, to monitor the device's signals and behavior.
  • Yes, the MAX25610 is a high-frequency device and requires proper EMI/EMC design considerations. Use shielding, filtering, and grounding techniques to minimize electromagnetic interference and ensure compliance with relevant EMI/EMC standards. Also, follow the recommended PCB layout and routing guidelines to minimize radiation and susceptibility.
