MAX25611AAUD/V+ - Analog Devices

Description: Automotive High-Voltage HB LED Controller

Download MAX25611AAUD/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

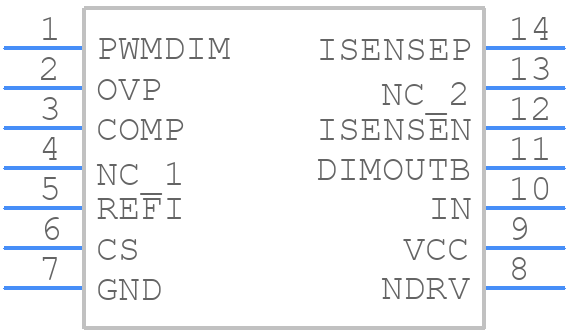

Symbol
MAX25611AAUD/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX25611AAUD/V+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 14 TSSOP
click to zoom
3D Models
MAX25611AAUD/V+ - Analog Devices - 3D model - Small Outline Packages - 14 TSSOP
click to zoom

MAX25611AAUD/V+ Details

  • Manufacturer Part Number:

    MAX25611AAUD/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-TSSOP_4.4-4.4_MM

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-06-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX25611AAUD/V+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX25611AAUD/V+ can be found in the MAX25611 Evaluation Kit documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the datasheet to ensure proper layout and routing.
  • To optimize the performance of the MAX25611AAUD/V+, it's recommended to follow the application notes and design guidelines provided by Analog Devices. Additionally, engineers can use simulation tools such as SPICE models and simulation software to model and optimize their design. It's also recommended to consult with Analog Devices' technical support team for specific application guidance.
  • The MAX25611AAUD/V+ has an operating temperature range of -40°C to +125°C. However, it's recommended to consult the datasheet for specific temperature-related specifications and derating guidelines to ensure reliable operation in the target application.
  • To troubleshoot issues with the MAX25611AAUD/V+, engineers can refer to the troubleshooting guide in the datasheet, which provides common issues and solutions. Additionally, Analog Devices provides a range of technical resources, including application notes, FAQs, and technical support teams, to help engineers identify and resolve issues.
  • The recommended power supply decoupling and filtering requirements for the MAX25611AAUD/V+ can be found in the datasheet and application notes. In general, it's recommended to use a combination of ceramic and electrolytic capacitors to decouple the power supply, and to follow proper PCB layout and routing guidelines to minimize noise and interference.
