MAX25611BAUD/V+ - Analog Devices

Description: Automotive High-Voltage HB LED Controller

Download MAX25611BAUD/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

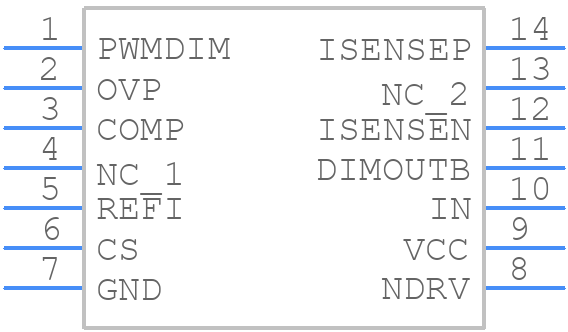

MAX25611BAUD/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX25611BAUD/V+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 14 TSSOP
click to zoom
3D Models
MAX25611BAUD/V+ - Analog Devices - 3D model - Small Outline Packages - 14 TSSOP
click to zoom

MAX25611BAUD/V+ Details

  • Manufacturer Part Number:

    MAX25611BAUD/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-TSSOP_4.4-4.4_MM

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-06-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX25611BAUD/V+ Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended layout in the device's datasheet, including a suggested land pattern, and thermal pad connection. It's essential to follow these guidelines to ensure optimal performance and thermal management.
  • The MAX25611BAUD/V+ is a highly configurable device. Analog Devices provides a detailed user guide, including register maps, configuration options, and application notes. Engineers should consult these resources to tailor the device to their specific use case.
  • The MAX25611BAUD/V+ is rated for operation from -40°C to +125°C. However, the junction temperature (TJ) should not exceed 150°C. Engineers should ensure proper thermal management and consider the device's thermal derating when operating at high temperatures.
  • The MAX25611BAUD/V+ is a robust device, but it's still susceptible to vibration-induced failures. Engineers should consider the device's mechanical stress limits and take necessary precautions, such as using a sturdy PCB and secure mounting, to ensure reliable operation in high-vibration environments.
  • Analog Devices provides a comprehensive troubleshooting guide in the device's datasheet, and application notes. Engineers should consult these resources, perform basic checks (e.g., power supply, clock signals), and use debugging tools (e.g., oscilloscopes, logic analyzers) to identify and resolve issues with the MAX25611BAUD/V+.
