MAX26040ATPAY+ - Analog Devices

Description: 4.5V to 36V, 2.2MHz, 0.6A/1.2A Buck-Boost Converters with Integrated H-Bridge

Download MAX26040ATPAY+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

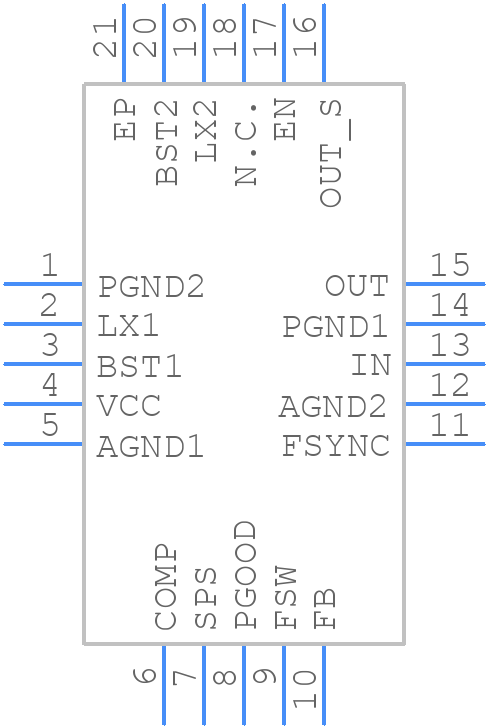

MAX26040ATPAY+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX26040ATPAY+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2044Y+4C
click to zoom
3D Models
MAX26040ATPAY+ - Analog Devices - 3D model - Quad Flat No-Lead - T2044Y+4C
click to zoom

MAX26040ATPAY+ Details

  • Manufacturer Part Number:

    MAX26040ATPAY+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX26040ATPAY+ Overview

Use the download button to access the MAX26040ATPAY+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX26, or try a keyword search, such as Switching Regulator or Controllers
