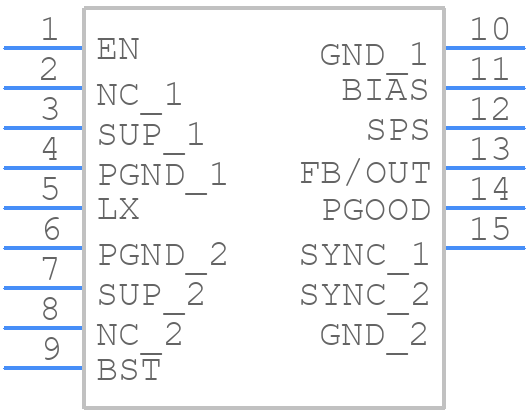

MAX26403AFLAY+ - Analog Devices

MAX26403AFLAY+ Details

• Manufacturer Part Number:

  MAX26403AFLAY+

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  FC2QFN-15

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Additional Feature:

  0.8-12V ADJUSTABLE OUTPUT ALSO AVAILABLE

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  3 V

• Input Voltage-Nom:

  14 V

• JESD-30 Code:

  S-PQCC-N15

• JESD-609 Code:

  e3

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  15

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Output Voltage-Max:

  5.07 V

• Output Voltage-Min:

  4.92 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  WQCCN

• Package Equivalence Code:

  LCC15,.12SQ(UNSPEC)

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, VERY VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.8 mm

• Supply Current-Max (Isup):

  0.01 mA

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  3000 kHz

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
