MAX2674EWT+T - Analog Devices

Description: RF Amplifier GPS/GNSS LNAs with Antenna Switch and Bias

Download MAX2674EWT+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

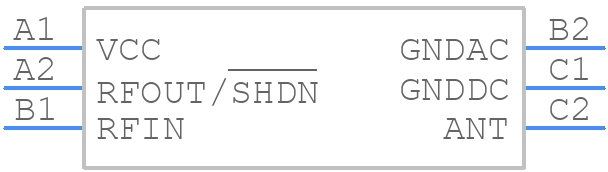

Symbol
MAX2674EWT+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX2674EWT+T - Analog Devices PCB footprint - BGA - BGA - N60M1+1_1
click to zoom
3D Models
MAX2674EWT+T - Analog Devices - 3D model - BGA - N60M1+1_1
click to zoom

MAX2674EWT+T Details

  • Manufacturer Part Number:

    MAX2674EWT+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    6-WLCSP-N/A

  • Package Description:

    0.86 X 1.26 MM, 0.64 MM HEIGHT, ROHS COMPLIANT, WLP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2011-01-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    R-PBGA-B6

  • Length:

    1.27 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.69 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    0.865 mm

MAX2674EWT+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX2674EWT+T involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate power plane for the VCC pin and to decouple it with a 10uF capacitor.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also recommended to add a small resistor (e.g. 10Ω) in series with the output capacitor to dampen any potential oscillations.
  • The MAX2674EWT+T can handle input voltages up to 36V, but it's recommended to keep the input voltage below 30V to ensure reliable operation and to prevent damage to the device.
  • The MAX2674EWT+T is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliable operation. Additionally, make sure to follow the recommended thermal management guidelines to prevent overheating.
  • To troubleshoot issues with the MAX2674EWT+T, start by checking the input and output voltages, and ensure that the device is properly powered and configured. Check for any signs of overheating, and verify that the PCB layout and component values meet the recommended guidelines. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX2674EWT+T Overview

Use the download button to access the MAX2674EWT+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX26, or try a keyword search, such as Cellular Telephone Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
