MAX2686EWS+T - Analog Devices

Description: RF Amplifier GPS/GNSS Low-Noise Amp

Download MAX2686EWS+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

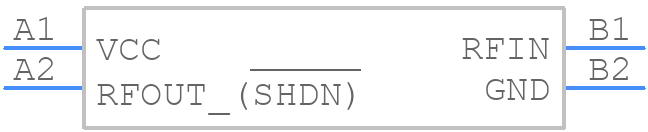

MAX2686EWS+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX2686EWS+T - Analog Devices PCB footprint - BGA - BGA - W40A0+1
click to zoom
3D Models
MAX2686EWS+T - Analog Devices - 3D model - BGA - W40A0+1
click to zoom

MAX2686EWS+T Details

  • Manufacturer Part Number:

    MAX2686EWS+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    4-WLCSP-N/A

  • Pin Count:

    4

  • Manufacturer Package Code:

    4-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2010-08-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PBGA-B4

  • Length:

    0.84 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    2.85 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    0.84 mm

MAX2686EWS+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX2686EWS+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the antenna. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the RF signal, a layer for the power supply, a layer for the ground, and a layer for the signals.
  • The value of RBIAS depends on the desired output power and the voltage supply. A higher RBIAS value reduces the output power, while a lower value increases it. The datasheet provides a formula to calculate RBIAS based on the desired output power and voltage supply. It's recommended to start with a higher value and adjust it based on the application's requirements.
  • The MAX2686EWS+T has an operating temperature range of -40°C to +85°C. However, the device's performance may degrade at higher temperatures, and it's recommended to derate the output power accordingly.
  • The MAX2686EWS+T requires a single 2.7V to 5.5V power supply. It's essential to ensure a stable power supply with minimal noise and ripple. A decoupling capacitor (typically 100nF) should be placed close to the device's power pin to filter out noise. Additionally, the device's enable pin (EN) should be tied to a logic high or low depending on the application's requirements.
  • The typical current consumption of the MAX2686EWS+T depends on the operating frequency, output power, and voltage supply. According to the datasheet, the device's typical current consumption is around 30mA at 2.7V and 20dBm output power. However, this value may vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX2686EWS+T Overview

Use the download button to access the MAX2686EWS+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX26, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
