Part Image

MAX30003CTI+ - Analog Devices

Description: Ultra-Low Power, Single-Channel Integrated Biopotential (ECG, R to R Detection) AFE

Download MAX30003CTI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

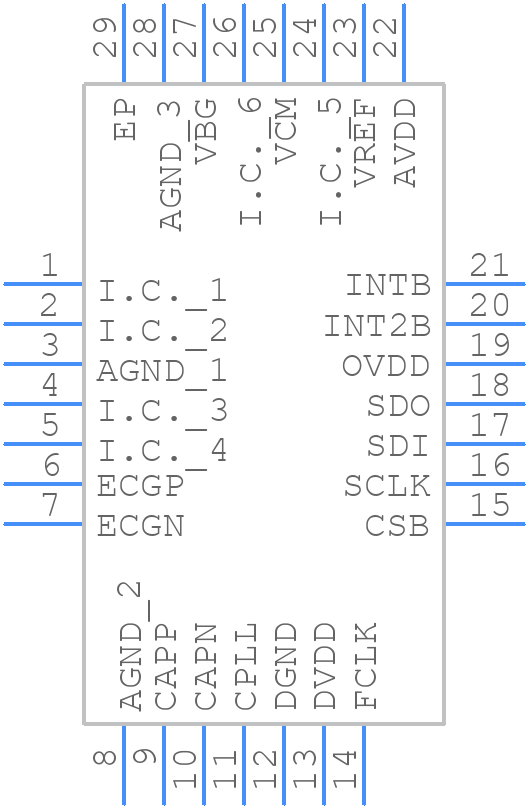

MAX30003CTI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX30003CTI+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2855+8
click to zoom
3D Models
MAX30003CTI+ - Analog Devices - 3D model - Quad Flat No-Lead - T2855+8
click to zoom

MAX30003CTI+ Details

  • Manufacturer Part Number:

    MAX30003CTI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-LFCSP-5X5X0.75

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-06-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.1 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX30003CTI+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX30003CTI+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To optimize the MAX30003CTI+ for low-power operation, use the lowest possible clock frequency, disable the internal voltage regulator, and use the shutdown mode when not in use. Additionally, consider using a lower supply voltage and reducing the analog input bandwidth.
  • The maximum cable length for the MAX30003CTI+ depends on the specific application and the type of cable used. As a general guideline, a cable length of up to 10 meters is recommended. However, this can be extended to up to 100 meters using a shielded twisted-pair cable and proper termination.
  • To handle EMI with the MAX30003CTI+, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the analog input lines. Additionally, consider using a low-pass filter on the analog inputs and a shielded cable for the digital interface.
  • The recommended calibration procedure for the MAX30003CTI+ involves applying a known input signal, measuring the output, and adjusting the internal calibration registers accordingly. The device should be calibrated at multiple temperatures and input ranges to ensure optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX30003CTI+ Overview

Use the download button to access the MAX30003CTI+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX30, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
