MAX30003CWV+T - Analog Devices

Description: Ultra-Low Power, Single-Channel Integrated Biopotential (ECG, R to R Detection) AFE

Download MAX30003CWV+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

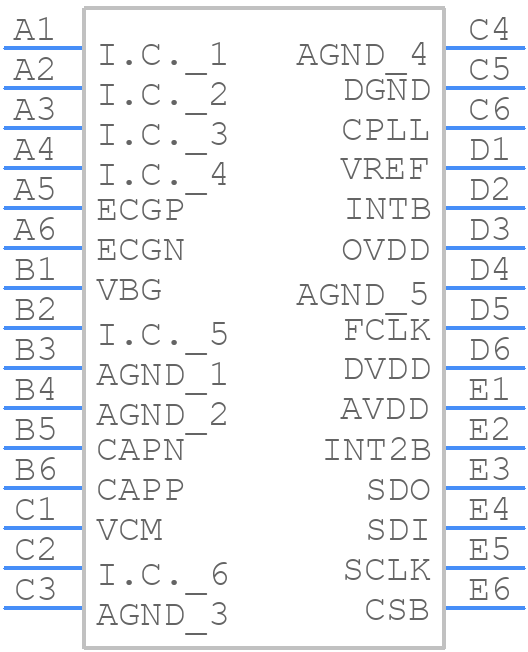

Symbol
MAX30003CWV+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX30003CWV+T - Analog Devices PCB footprint - BGA - BGA - W302L2+1
click to zoom
3D Models
MAX30003CWV+T - Analog Devices - 3D model - BGA - W302L2+1
click to zoom

MAX30003CWV+T Details

  • Manufacturer Part Number:

    MAX30003CWV+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    30-WLCSP-N/A

  • Pin Count:

    30

  • Manufacturer Package Code:

    30-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-06-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBGA-B30

  • Length:

    2.926 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.1 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.74 mm

MAX30003CWV+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX30003CWV+T involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance. A 4-layer PCB with a dedicated analog ground plane is recommended. Additionally, place the device close to the ECG electrodes and use shielded cables to connect them to the device.
  • To ensure the accuracy of the ECG signal, it's essential to follow proper electrode placement, use high-quality electrodes, and maintain a clean and dry skin-electrode interface. Additionally, use a driven right leg (DRL) circuit to reduce common-mode noise, and implement a suitable filtering scheme to remove noise and artifacts from the signal.
  • The maximum cable length supported by the MAX30003CWV+T depends on the cable type, shielding, and the frequency of interest. As a general guideline, cable lengths up to 1 meter are recommended for ECG applications. However, longer cable lengths can be used with proper shielding and filtering to minimize signal attenuation and noise pickup.
  • Yes, the MAX30003CWV+T can be used for other biopotential applications such as electromyography (EMG), electrooculography (EOG), and electroencephalography (EEG). However, the device's performance and accuracy may vary depending on the specific application and requirements. It's essential to consult the datasheet and application notes for guidance on using the device for other biopotential applications.
  • A suitable power supply for the MAX30003CWV+T involves using a low-noise, low-dropout regulator (LDO) with a high power supply rejection ratio (PSRR). Decoupling capacitors should be placed close to the device's power pins, and a 10uF ceramic capacitor is recommended for each power pin. Additionally, use a separate analog and digital power supply to minimize digital noise coupling into the analog section.
