MAX3002EUP+ - Analog Devices

Description: MAX3002EUP+, Octal Voltage Level Translator, LVCMOS, LVTTL, 3-State 1.65 to 5.5V 20-Pin TSSOP

Download MAX3002EUP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

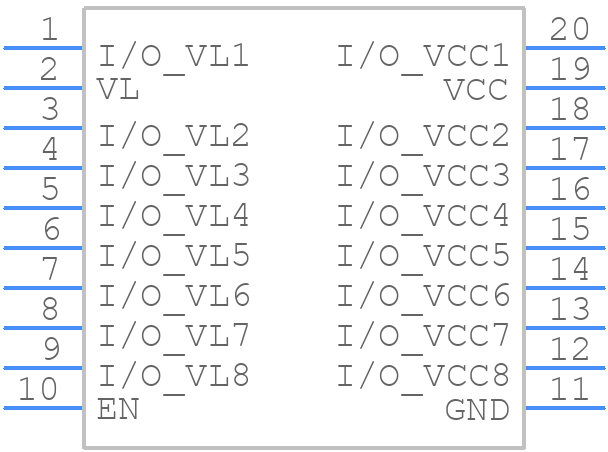

MAX3002EUP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3002EUP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U20+2
click to zoom
3D Models
MAX3002EUP+ - Analog Devices - 3D model - Small Outline Packages - U20+2
click to zoom

MAX3002EUP+ Details

  • Manufacturer Part Number:

    MAX3002EUP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2002-11-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Delay-Max:

    20 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Latch or Register:

    NONE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.2 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    1.65 V

  • Supply Voltage1-Nom:

    1.65 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX3002EUP+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3002EUP+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the device and the ECG electrodes. A 4-layer PCB with a dedicated analog layer is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To optimize the MAX3002EUP+ for low-power consumption, ensure that the device is in shutdown mode when not in use, use the lowest possible clock frequency, and adjust the gain and bandwidth settings according to your application's requirements. Additionally, consider using a low-power microcontroller and optimizing the system's overall power management strategy.
  • The MAX3002EUP+ has built-in filters, but additional filtering may be necessary to remove noise and artifacts. A combination of digital and analog filtering techniques can be used, such as using a notch filter to remove power line noise, a high-pass filter to remove baseline wander, and a low-pass filter to remove high-frequency noise. Additionally, consider using techniques like signal averaging and artifact removal algorithms.
  • To ensure the accuracy and reliability of the ECG signal, it's essential to follow proper electrode placement and connection guidelines, use high-quality electrodes, and ensure good skin contact. Additionally, consider using techniques like signal quality metrics, electrode impedance measurement, and artifact detection to identify and correct any issues.
  • The maximum cable length and type recommended for the ECG electrodes depend on the specific application and environment. As a general guideline, use shielded cables with a maximum length of 1-2 meters to minimize noise and interference. Consider using cables with a low capacitance and high shielding effectiveness to ensure signal integrity.
