MAX3002EUP+T - Analog Devices

Description: Translation - Voltage Levels +1.2V to +5.5V, +/-15kV ESD-Protected, 0.1 uA, 35Mbps, 8-Channel Level Translators

Download MAX3002EUP+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

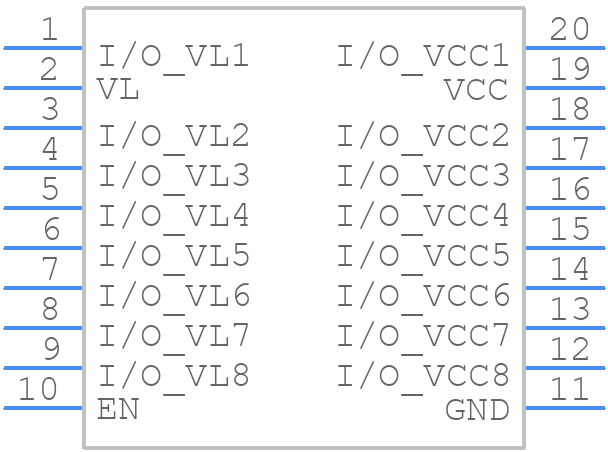

MAX3002EUP+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3002EUP+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U20+3
click to zoom
3D Models
MAX3002EUP+T - Analog Devices - 3D model - Small Outline Packages - U20+3
click to zoom

MAX3002EUP+T Details

  • Manufacturer Part Number:

    MAX3002EUP+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP, TSSOP20,.25

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-TSSOP_4.4-4.4_MM

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-11-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Delay-Max:

    20 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Latch or Register:

    NONE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.2 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    1.65 V

  • Supply Voltage1-Nom:

    1.65 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX3002EUP+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3002EUP+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the device and the ECG electrodes. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to reduce noise and interference.
  • To ensure the accuracy of the ECG signal, it's essential to follow proper electrode placement, use high-quality electrodes, and maintain a clean and dry skin-electrode interface. Additionally, the device should be calibrated regularly, and the signal should be filtered and amplified properly to reduce noise and artifacts.
  • The maximum cable length supported by the MAX3002EUP+T depends on the cable type, shielding, and the frequency of the ECG signal. As a general guideline, a cable length of up to 3 meters is recommended to maintain signal integrity. However, it's recommended to consult the datasheet and application notes for specific guidance on cable selection and layout.
  • To handle EMI and RFI, it's recommended to use proper shielding, grounding, and filtering techniques. The device should be placed in a shielded enclosure, and the PCB should be designed with EMI and RFI in mind. Additionally, the use of EMI filters and common-mode chokes can help reduce interference.
  • The power consumption of the MAX3002EUP+T depends on the operating mode and the frequency of the ECG signal. The device typically consumes around 1.5mA in normal operating mode. To optimize power consumption for battery-powered applications, it's recommended to use a low-power microcontroller, optimize the device's operating mode, and use power-saving techniques such as sleep mode and dynamic voltage scaling.
