MAX30034CUA+ - Analog Devices

Description: Biomedical Sensors Bio Potential AFE

Download MAX30034CUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

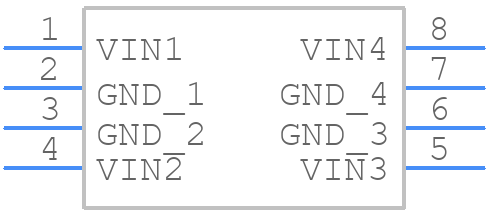

Symbol
MAX30034CUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX30034CUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8L uMAX/uSOP
click to zoom
3D Models
MAX30034CUA+ - Analog Devices - 3D model - Small Outline Packages - 8L uMAX/uSOP
click to zoom

MAX30034CUA+ Details

  • Manufacturer Part Number:

    MAX30034CUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Date Of Intro:

    2016-08-31

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    LOW CAPACITANCE

  • Configuration:

    SEPARATE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    BIDIRECTIONAL

  • Power Dissipation-Max:

    0.953 W

  • Reference Standard:

    IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    5 V

  • Reverse Current-Max:

    0.001 µA

  • Reverse Test Voltage:

    5 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX30034CUA+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX30034CUA+ is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signals away from the digital signals. A 4-layer PCB with a dedicated analog ground layer is recommended. Additionally, the device's exposed pad should be connected to the analog ground.
  • To optimize the ECG signal quality, ensure that the electrodes are properly connected, the skin-electrode impedance is minimized, and the device is properly calibrated. Additionally, use a high-pass filter to remove DC offsets, and a low-pass filter to remove high-frequency noise. The device's internal filters can also be adjusted to optimize signal quality.
  • The maximum cable length for the MAX30034CUA+ depends on the application and the type of cable used. As a general rule, the cable length should be kept as short as possible to minimize noise and signal degradation. However, cable lengths up to 1 meter can be used with proper shielding and termination.
  • To handle EMI, ensure that the device is properly shielded, and the PCB is designed with EMI in mind. Use a metal shield around the device, and keep the analog signals away from the digital signals. Additionally, use EMI filters and ferrite beads to reduce EMI.
  • The power consumption of the MAX30034CUA+ depends on the operating mode and the clock frequency. In normal operation, the device consumes around 12mA at 1.8V. In low-power mode, the device consumes around 2mA at 1.8V.
