MAX3004EUP+ - Analog Devices

Description: Translation - Voltage Levels +1.2V to +5.5V, +/-15kV ESD-Protected, 0.1 uA, 35Mbps, 8-Channel LevelTranslators

Download MAX3004EUP+ Model

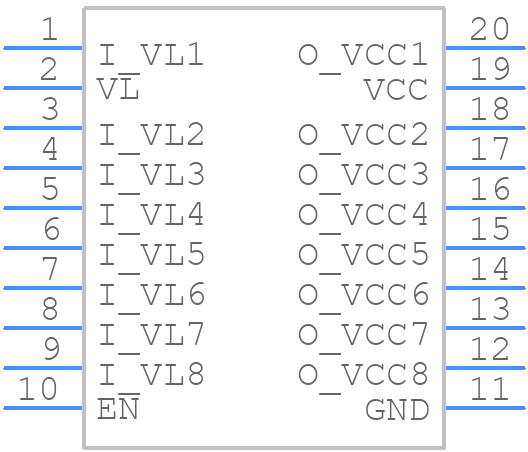

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX3004EUP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX3004EUP+
click to zoom
3D Models
MAX3004EUP+ - Analog Devices  - 3D model - Small Outline Packages - MAX3004EUP+
click to zoom

MAX3004EUP+ Details

  • Manufacturer Part Number:

    MAX3004EUP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-11-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Delay-Max:

    20 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Latch or Register:

    NONE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.2 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    1.65 V

  • Supply Voltage1-Nom:

    1.65 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX3004EUP+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3004EUP+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. A 4-layer PCB with a dedicated analog ground layer is recommended. Additionally, the device's exposed pad should be connected to a solid ground plane to improve thermal performance.
  • To optimize ECG signal quality with the MAX3004EUP+, ensure that the electrodes are properly placed on the body, and the leads are shielded to minimize noise. Use a driven right leg (DRL) circuit to reduce common-mode noise, and implement a high-pass filter to remove DC offsets. Additionally, adjust the gain and filter settings to optimize signal quality for your specific application.
  • The maximum cable length for the MAX3004EUP+'s ECG leads depends on the specific application and the noise environment. As a general guideline, cable lengths up to 1 meter are recommended. However, longer cable lengths may be possible with proper shielding and noise reduction techniques. It's essential to evaluate the system's noise performance and adjust the cable length accordingly.
  • Calibration of the MAX3004EUP+ involves adjusting the gain, offset, and filter settings to optimize signal quality for your specific ECG application. This may involve using a calibration signal source, such as a signal generator, and adjusting the device's settings to achieve the desired signal quality. It's essential to consult the datasheet and application notes for specific calibration procedures.
  • The power consumption of the MAX3004EUP+ in low-power mode depends on the specific configuration and operating conditions. According to the datasheet, the device's typical power consumption in low-power mode is around 15 μA. However, this value can vary depending on the clock frequency, ADC resolution, and other settings. It's essential to consult the datasheet and evaluate the device's power consumption in your specific application.
