Part Image

MAX30102EFD+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX30102EFD+ - PULSE OXIMETER/HEART RATE SENSOR, OESIP

Download MAX30102EFD+ Model

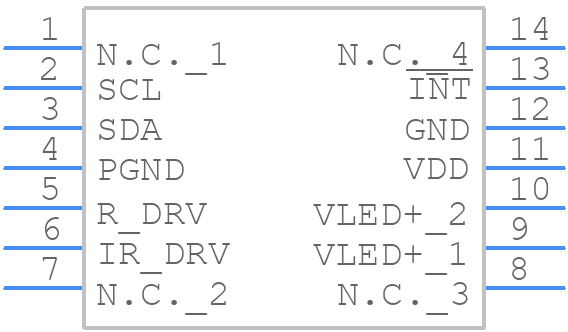

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX30102EFD+ - Analog Devices PCB footprint - Other - Other - 14-Lead-OESIP
click to zoom
3D Models
MAX30102EFD+ - Analog Devices  - 3D model - Other - 14-Lead-OESIP
click to zoom

MAX30102EFD+ Details

  • Manufacturer Part Number:

    MAX30102EFD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-LGA_CAV-3.3x5.6x1.55

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-LGA_CAV-3.3x5.6x1.55

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2015-10-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

MAX30102EFD+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX30102EFD+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the sensor and the microcontroller. A 4-layer PCB with a dedicated analog layer is recommended. Additionally, the layout should be designed to minimize noise and electromagnetic interference (EMI).
  • To optimize the MAX30102EFD+ for low power consumption, set the sample rate to the lowest required value, use the lowest possible LED current, and enable the shutdown mode when not in use. Additionally, consider using a low-power microcontroller and optimizing the system's power management scheme.
  • The recommended algorithm for pulse oximetry and heart rate calculation using the MAX30102EFD+ involves filtering the raw data to remove noise, calculating the DC and AC components of the signal, and then using the ratio of the AC to DC components to estimate oxygen saturation. The heart rate can be calculated using peak detection or frequency analysis techniques.
  • To handle ambient light interference in the MAX30102EFD+, use a high-pass filter to remove the DC component of the signal, and consider using a photodiode with a high rejection ratio to ambient light. Additionally, consider using a shielding or a light-blocking material to reduce ambient light interference.
  • The recommended method for calibrating the MAX30102EFD+ involves using a calibration procedure that takes into account the individual sensor characteristics, such as the LED intensity and the photodiode sensitivity. The calibration procedure should be performed at multiple temperatures and oxygen saturation levels to ensure accurate results.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX30102EFD+ Overview

Use the download button to access the MAX30102EFD+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX30, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
