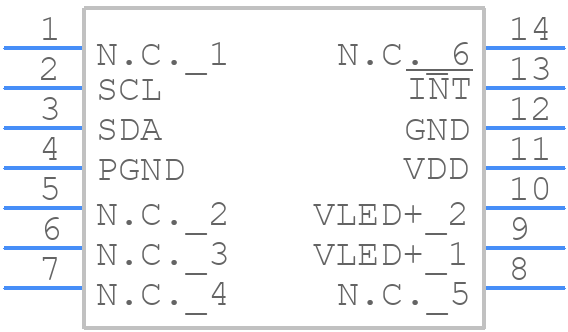

MAX30102EFD+T - Analog Devices

MAX30102EFD+T Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the MAX30102EFD+T?
  A good PCB layout for the MAX30102EFD+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the device and the photodiodes. A 4-layer PCB with a dedicated analog ground plane is recommended.
• How do I optimize the MAX30102EFD+T for low power consumption?
  To optimize the MAX30102EFD+T for low power consumption, use the lowest possible sampling rate, disable the device when not in use, and adjust the LED current to the minimum required for your application. Additionally, consider using a low-power microcontroller and optimizing your firmware to minimize power consumption.
• What is the recommended method for calibrating the MAX30102EFD+T?
  The recommended method for calibrating the MAX30102EFD+T involves using a calibration procedure that involves taking multiple readings with the device in a dark environment, then applying a correction factor to the readings. The exact calibration procedure may vary depending on the specific application and requirements.
• How do I handle ambient light interference with the MAX30102EFD+T?
  To handle ambient light interference with the MAX30102EFD+T, use a combination of optical and electrical techniques. Optically, use a shield or a light-blocking material to minimize ambient light. Electrically, use a high-pass filter to remove the DC component of the signal, and consider using a notch filter to remove specific frequency components.
• What is the maximum distance between the MAX30102EFD+T and the photodiodes?
  The maximum distance between the MAX30102EFD+T and the photodiodes depends on the specific application and the type of photodiodes used. As a general rule, keep the distance as short as possible (less than 10mm) to minimize signal attenuation and noise.
