MAX3013EUP+ - Analog Devices

Description: Translation - Voltage Levels +1.2V to +3.6V, 0.1 uA, 100Mbps, 8-Channel Level Translators

Download MAX3013EUP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

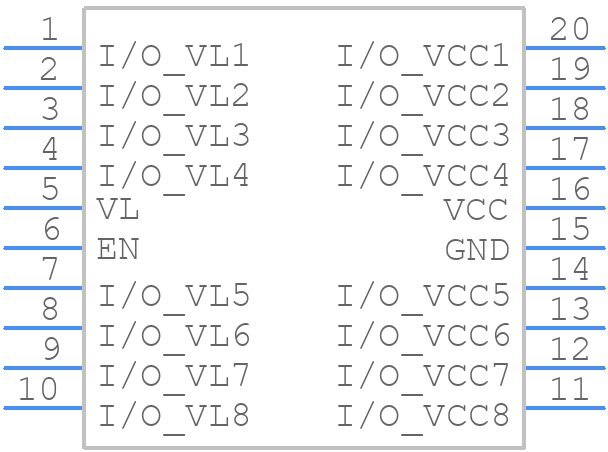

MAX3013EUP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3013EUP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20 TSSOP
click to zoom
3D Models
MAX3013EUP+ - Analog Devices - 3D model - Small Outline Packages - 20 TSSOP
click to zoom

MAX3013EUP+ Details

  • Manufacturer Part Number:

    MAX3013EUP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2004-02-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Delay-Max:

    1000 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Latch or Register:

    NONE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max:

    3.2 V

  • Supply Voltage-Min:

    1.2 V

  • Supply Voltage-Nom:

    1.8 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    1.65 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX3013EUP+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX30103EUP+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the sensor and the microcontroller. A 4-layer PCB with a dedicated analog layer is recommended. Additionally, the layout should ensure that the photodiodes are not exposed to direct light.
  • To optimize the sensor's performance, you should consider factors such as the type of light source, the distance between the sensor and the light source, and the desired signal-to-noise ratio. You may need to adjust the LED current, the sampling rate, and the gain settings to achieve the best results for your specific application.
  • The recommended method for calibrating the MAX30103EUP+ involves using a calibration coefficient that is stored in the device's internal memory. This coefficient is used to compensate for variations in the sensor's sensitivity and is calculated during the manufacturing process. You can also perform a two-point calibration by measuring the sensor's output at two known light intensities and using these values to calculate the calibration coefficient.
  • To handle noise and interference in the sensor's output, you can use digital filtering techniques such as averaging, median filtering, or low-pass filtering. You can also use analog filtering techniques such as adding a capacitor to the output pin to reduce high-frequency noise. Additionally, you can use shielding and grounding techniques to reduce electromagnetic interference.
  • The maximum operating temperature range for the MAX30103EUP+ is -40°C to +85°C. However, the device's performance may degrade at temperatures above 70°C, and the accuracy of the sensor's output may be affected.
