MAX30210ENL+ - Analog Devices

Description: ?0.1?C Accurate, Ultra-Small, Low-Power I2C Digital Temperature Sensor

Download MAX30210ENL+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

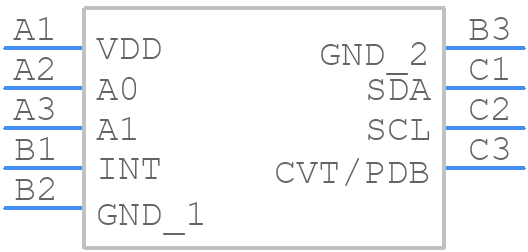

Symbol
MAX30210ENL+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX30210ENL+ - Analog Devices PCB footprint - BGA - BGA - N90A0+1
click to zoom
3D Models
MAX30210ENL+ - Analog Devices - 3D model - BGA - N90A0+1
click to zoom

MAX30210ENL+ Details

  • Manufacturer Part Number:

    MAX30210ENL+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    9-WLCSP-N/A

  • Package Description:

    WLP-9

  • Pin Count:

    9

  • Manufacturer Package Code:

    9-WLCSP-N/A

  • Date Of Intro:

    2023-01-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Accuracy-Max (Cel):

    0.15 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    0.5 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    UNSPECIFIED

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    16

  • Number of Terminals:

    9

  • Operating Current-Max:

    0.08 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Voltage-Max:

    1.4 V

  • Output Voltage-Min:

    0.4 V

  • Package Equivalence Code:

    BGA9,3X3,11

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    2 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Termination Type:

    SOLDER

MAX30210ENL+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX30210ENL+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the device and the temperature sensor. A 4-layer PCB with a dedicated analog layer is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The MAX30210ENL+ does not require calibration for accurate temperature readings. It has an internal calibration mechanism that ensures accurate readings over the entire operating temperature range. However, if you need to improve the accuracy further, you can perform a one-point calibration by measuring the temperature reading at a known temperature point and adjusting the offset accordingly.
  • The maximum cable length for the remote temperature sensor depends on the cable type, noise environment, and desired accuracy. As a general guideline, a cable length of up to 10 meters is recommended. However, if you need a longer cable, you can use a shielded twisted-pair cable and add noise filtering components to ensure accurate readings.
  • The MAX30210ENL+ is rated for operation up to 150°C, making it suitable for high-temperature applications. However, it's essential to ensure that the device is properly heatsinked and that the PCB is designed to withstand high temperatures. Additionally, you should consider the temperature rating of the remote temperature sensor and the cable.
  • To handle EMI with the MAX30210ENL+, you should use a shielded cable for the remote temperature sensor, add EMI filters to the power supply lines, and ensure that the device is properly grounded. Additionally, you can use a metal shield or a Faraday cage to enclose the device and the PCB.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX30210ENL+ Overview

Use the download button to access the MAX30210ENL+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX30, or try a keyword search, such as Temperature Sensors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
