MAX303ESE+ - Analog Devices

Description: Maxim MAX303ESE+, Analogue Switch Dual SPDT, 10 → 30 V, 16-Pin SOIC

Download MAX303ESE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

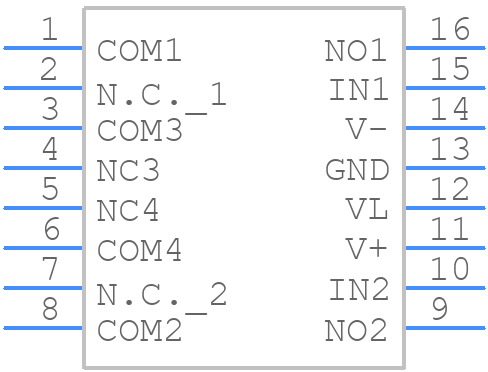

MAX303ESE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX303ESE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Narrow SO_
click to zoom
3D Models
MAX303ESE+ - Analog Devices - 3D model - Small Outline Packages - 16 Narrow SO_
click to zoom

MAX303ESE+ Details

  • Manufacturer Part Number:

    MAX303ESE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SO-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1993-09-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -20 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    72 dB

  • On-state Resistance Match-Nom:

    0.5 Ω

  • On-state Resistance-Max (Ron):

    35 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.005 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    100 ns

  • Switch-on Time-Max:

    150 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX303ESE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX303ESE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the device to the power supply and other components. A 4-layer PCB with a dedicated analog layer is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure the accuracy of the MAX303ESE+ output, it's crucial to follow proper PCB layout and design guidelines, use a high-quality power supply, and minimize noise and interference. Additionally, calibration and trimming of the device may be necessary to achieve the desired level of accuracy. It's also important to consider the temperature range and operating conditions of the device.
  • The MAX303ESE+ has an operating temperature range of -40°C to +125°C. However, the device's performance and accuracy may degrade at extreme temperatures. It's essential to consider the operating temperature range and its impact on the device's performance in your specific application.
  • The MAX303ESE+ is a surface-mount device and can be sensitive to vibration and mechanical stress. While it's possible to use the device in a high-vibration environment, it's essential to take precautions to ensure the device is properly secured to the PCB and that the PCB is designed to withstand the vibration. Additionally, consider using a device with a higher vibration tolerance or implementing vibration-dampening measures.
  • To troubleshoot issues with the MAX303ESE+, start by reviewing the datasheet and application notes to ensure proper device operation and configuration. Use a logic analyzer or oscilloscope to verify the device's input and output signals. Check the power supply and ensure it's within the recommended specifications. If issues persist, consult with Analog Devices' technical support or a qualified engineer for further assistance.
