MAX3042BCUE+ - Analog Devices

Description: MAX3042BCUE+, 4 (RS-422), 4 (RS-485)-TX RS-485, RS-422, Quad Transmitter, 20Mbit/s Differential 4.75 → 5.25 V

Download MAX3042BCUE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

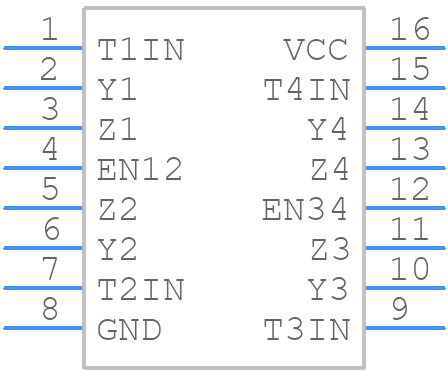

MAX3042BCUE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3042BCUE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U16+1
click to zoom
3D Models
MAX3042BCUE+ - Analog Devices - 3D model - Small Outline Packages - U16+1
click to zoom

MAX3042BCUE+ Details

  • Manufacturer Part Number:

    MAX3042BCUE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    ULTRA SMALL, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    4

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1500 ns

  • Width:

    4.4 mm

MAX3042BCUE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3042BCUE+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the signal source. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device's exposed pad should be connected to a solid ground plane to improve thermal performance.
  • The MAX3042BCUE+ requires a single 3.3V or 5V power supply. Ensure that the power supply is clean and well-regulated, with minimal noise and ripple. A 0.1uF bypass capacitor between the VCC pin and GND pin is recommended to filter out high-frequency noise. Additionally, the device's power supply should be turned on before the signal source is applied.
  • The MAX3042BCUE+ can support data rates up to 100Mbps, making it suitable for high-speed applications such as USB, SATA, and PCIe. However, the actual data rate may be limited by the signal quality, PCB layout, and other system-level factors.
  • Common issues with the MAX3042BCUE+ include signal distortion, noise, and oscillation. To troubleshoot these issues, check the PCB layout, power supply quality, and signal source quality. Ensure that the device is properly powered and that the input and output traces are short and separate. Use an oscilloscope to measure the signal quality and identify any issues.
  • The MAX3042BCUE+ is an industrial-grade device, but it is not specifically designed for automotive applications. However, it can be used in automotive systems with proper design and testing. Ensure that the device meets the required automotive standards, such as AEC-Q100, and that it is properly qualified for the specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3042BCUE+ Overview

Use the download button to access the MAX3042BCUE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX30, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
