MAX3050ASA+ - Analog Devices

Description: CAN Transceiver 2Mbit/s ISO 11898 Sleep, Standby-Mode 8pins SOIC

Download MAX3050ASA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

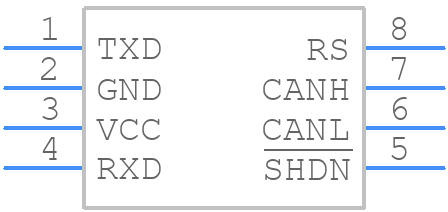

Symbol
MAX3050ASA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3050ASA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+5
click to zoom
3D Models
MAX3050ASA+ - Analog Devices - 3D model - Small Outline Packages - S8+5
click to zoom

MAX3050ASA+ Details

  • Manufacturer Part Number:

    MAX3050ASA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2002-11-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX3050ASA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3050ASA+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the resistors. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure accurate temperature measurements, it's crucial to calibrate the device, use a high-accuracy voltage reference, and minimize noise and thermal gradients on the PCB. Additionally, the thermistor should be placed close to the device being measured, and the device should be operated within its specified temperature range.
  • The maximum cable length for the MAX3050ASA+ depends on the specific application and the type of cable used. However, as a general rule, it's recommended to keep the cable length as short as possible (less than 1 meter) to minimize noise and signal degradation. If a longer cable is required, it's essential to use a shielded cable and follow proper termination and grounding techniques.
  • The MAX3050ASA+ is designed to work with 10kΩ NTC thermistors, but it can be used with other types of thermistors with some modifications. However, the device's accuracy and performance may be affected, and additional calibration may be required. It's recommended to consult the datasheet and application notes for guidance on using alternative thermistors.
  • During power-up and power-down sequences, it's essential to ensure that the MAX3050ASA+ is properly initialized and configured to avoid incorrect temperature readings. The device should be powered up and down slowly (typically within 10ms to 100ms) to prevent voltage spikes and noise. Additionally, the device's reset pin should be properly handled to ensure a clean startup.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3050ASA+ Overview

Use the download button to access the MAX3050ASA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX30, or try a keyword search, such as Network Interfaces
