MAX3057ASA+ - Analog Devices

Description: CAN Transceiver 2Mbit/s ISO 11898 Sleep, Standby-Mode 8pins SOIC

Download MAX3057ASA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

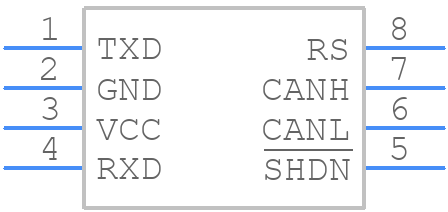

MAX3057ASA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3057ASA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO-3
click to zoom
3D Models
MAX3057ASA+ - Analog Devices - 3D model - Small Outline Packages - 8 SO-3
click to zoom

MAX3057ASA+ Details

  • Manufacturer Part Number:

    MAX3057ASA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2002-11-14
