MAX306CPI+ - Analog Devices

Description: MAX306CPI+, Multiplexer Single 16:1, 12 V, 15 V, 18 V, 24 V, 28 V, 5 V, 9 V, 28-Pin, PDIP, 1

Download MAX306CPI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

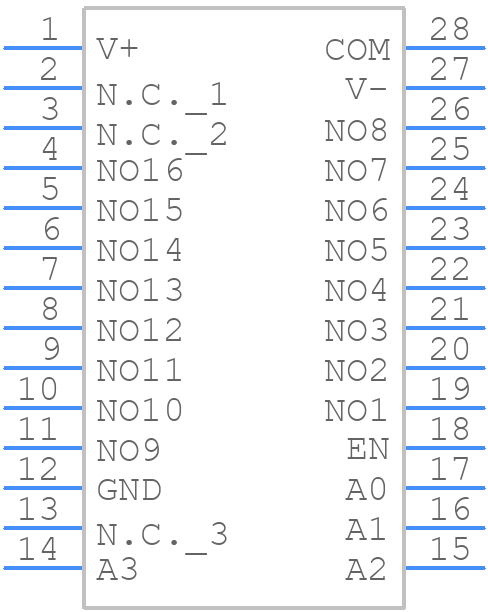

Symbol
MAX306CPI+ - Analog Devices - PCB symbol
click to zoom

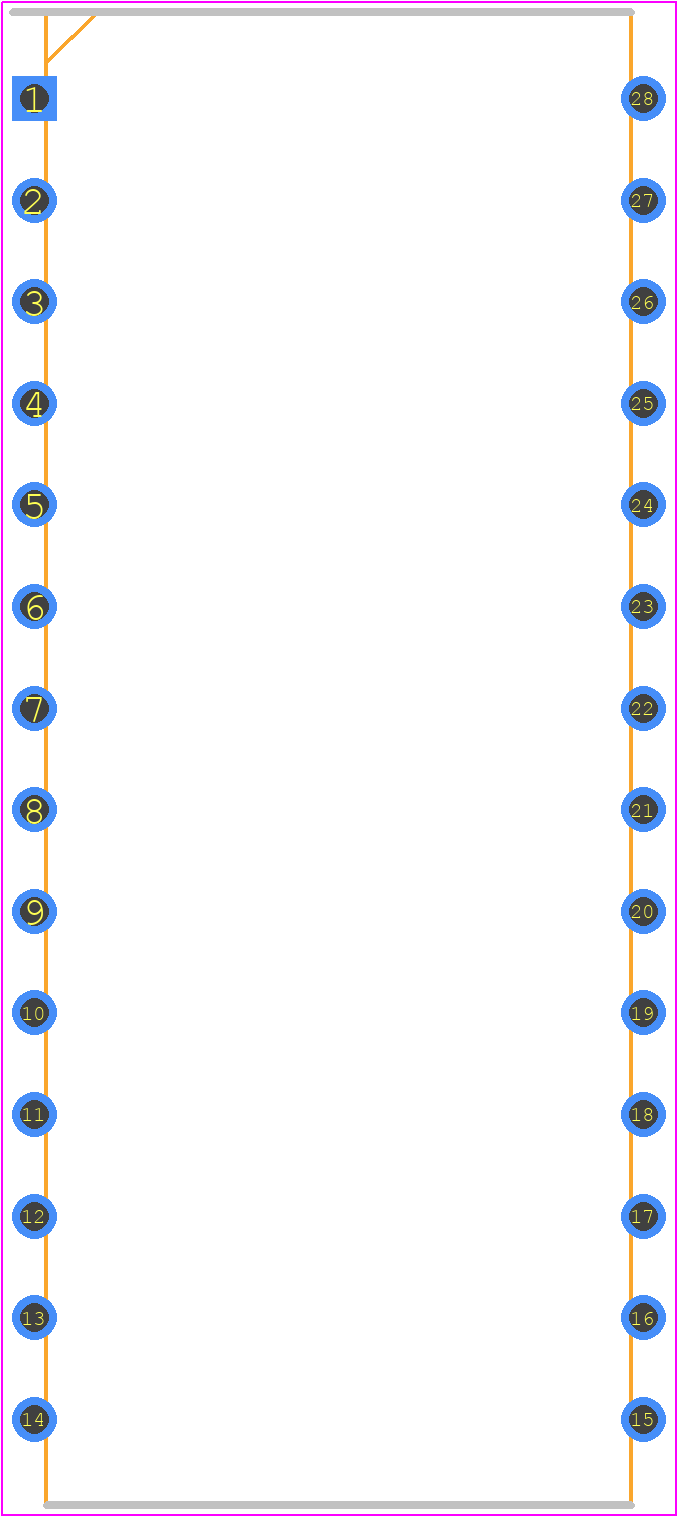

PCB Footprints
MAX306CPI+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - p28+3
click to zoom
3D Models
MAX306CPI+ - Analog Devices - 3D model - Dual-In-Line Packages - p28+3
click to zoom

MAX306CPI+ Details

  • Manufacturer Part Number:

    MAX306CPI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-PDIP-600_MIL

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-PDIP-600_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1994-08-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e3

  • Length:

    36.83 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -20 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Off-state Isolation-Nom:

    69 dB

  • On-state Resistance Match-Nom:

    1.5 Ω

  • On-state Resistance-Max (Ron):

    100 Ω

  • Operating Temperature-Max:

    70 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.075 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    150 ns

  • Switch-on Time-Max:

    200 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15.24 mm

MAX306CPI+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX306CPI+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • Proper termination of the MAX306CPI+ involves using the correct termination resistors (usually 50Ω) on the differential outputs and ensuring that the termination is close to the device. It's also important to match the impedance of the transmission line to the output impedance of the device. The datasheet provides more information on termination schemes and values.
  • The maximum cable length supported by the MAX306CPI+ depends on the specific application and the type of cable used. As a general rule, the maximum cable length is limited by the signal attenuation and distortion caused by the cable. A good rule of thumb is to keep the cable length below 10 meters for most applications. However, it's possible to use longer cables with proper signal conditioning and amplification.
  • The MAX306CPI+ is designed to operate from a single 3.3V or 5V supply. While it's possible to use the device with a different voltage supply, it's not recommended as it may affect the device's performance and reliability. If a different voltage supply is required, it's essential to consult with Analog Devices Inc or a qualified engineer to ensure the device operates within its specifications.
  • Troubleshooting common issues with the MAX306CPI+ involves checking the power supply, signal integrity, and PCB layout. Common issues include signal distortion, noise, and device malfunction. It's essential to consult the datasheet, application notes, and Analog Devices Inc's support resources for guidance on troubleshooting and debugging.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX306CPI+ Overview

Use the download button to access the MAX306CPI+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX30, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
