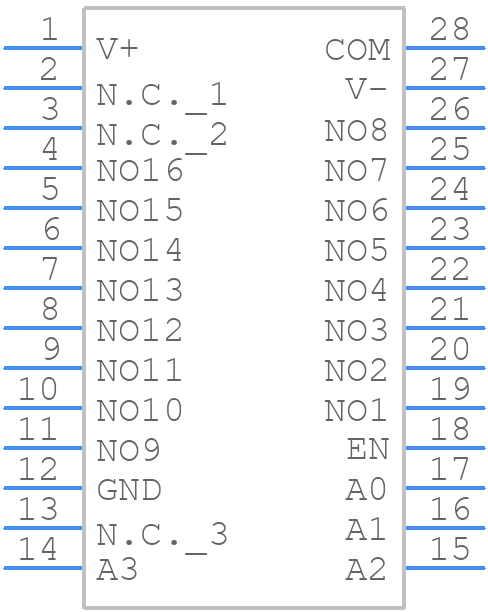

MAX306EUI+ - Analog Devices

MAX306EUI+ Details

• Manufacturer Part Number:

  MAX306EUI+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  28-TSSOP_4.4-4.4_MM

• Package Description:

  4.40 MM, ROHS COMPLIANT, PLASTIC, MO-153-AE, TSSOP-28

• Pin Count:

  28

• Manufacturer Package Code:

  28-TSSOP_4.4-4.4_MM

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  1994-08-12

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Analog IC - Other Type:

  SINGLE-ENDED MULTIPLEXER

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e3

• Length:

  9.7 mm

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage-Max (Vsup):

  -20 V

• Neg Supply Voltage-Min (Vsup):

  -4.5 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Normal Position:

  NO

• Number of Channels:

  16

• Number of Functions:

  1

• Number of Terminals:

  28

• Off-state Isolation-Nom:

  69 dB

• On-state Resistance Match-Nom:

  1.5 Ω

• On-state Resistance-Max (Ron):

  100 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  COMMON OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP28,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.1 mm

• Signal Current-Max:

  0.03 A

• Supply Current-Max (Isup):

  0.075 mA

• Supply Voltage-Max (Vsup):

  20 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  150 ns

• Switch-on Time-Max:

  200 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4.4 mm
