MAX307MWI/PR+ - Analog Devices

Description: Precision, 16-Channel/Dual 8-Channel, High-Performance, CMOS Analog Multiplexers

Download MAX307MWI/PR+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

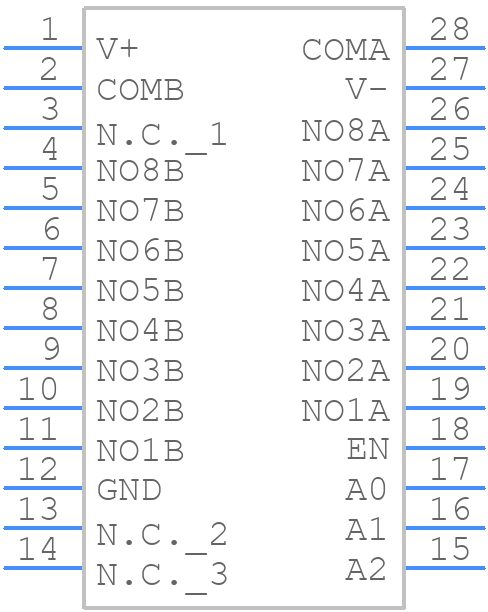

MAX307MWI/PR+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX307MWI/PR+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - W28+6
click to zoom
3D Models
MAX307MWI/PR+ - Analog Devices - 3D model - Small Outline Packages - W28+6
click to zoom

MAX307MWI/PR+ Details

  • Manufacturer Part Number:

    MAX307MWI/PR+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-SOIC_W-300_MIL

  • Package Description:

    SOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1994-08-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -20 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NC

  • Number of Channels:

    8

  • Number of Functions:

    2

  • Number of Terminals:

    28

  • Off-state Isolation-Nom:

    69 dB

  • On-state Resistance Match-Nom:

    1.5 Ω

  • On-state Resistance-Max (Ron):

    100 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.075 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    300 ns

  • Switch-on Time-Max:

    400 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm
