MAX312EUE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX312EUE+ - Analogue Switch, 4 Channels, SPST, 10 ohm, 9V to 36V, ± 4.5V to ± 20V, TSSOP, 16 Pins

Download MAX312EUE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

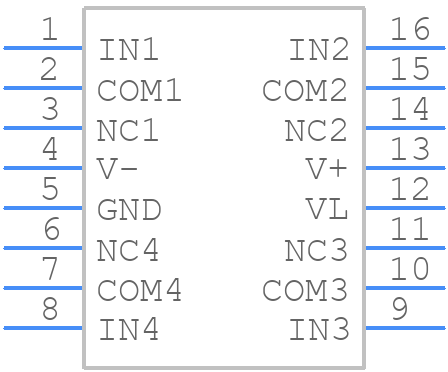

MAX312EUE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX312EUE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U16+1
click to zoom
3D Models
MAX312EUE+ - Analog Devices - 3D model - Small Outline Packages - U16+1
click to zoom

MAX312EUE+ Details

  • Manufacturer Part Number:

    MAX312EUE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1995-09-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -20 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    65 dB

  • On-state Resistance Match-Nom:

    0.3 Ω

  • On-state Resistance-Max (Ron):

    10 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Signal Current-Max:

    0.1 A

  • Supply Current-Max (Isup):

    0.005 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    235 ns

  • Switch-on Time-Max:

    275 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX312EUE+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX312EUE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a shielded cable for the RS-232 interface and to keep the cable away from noisy digital signals.
  • To ensure reliable operation of the MAX312EUE+ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range, and the power supply should be designed to handle the increased current consumption at higher temperatures.
  • The MAX312EUE+ is designed to operate with standard RS-232 voltage levels, but it can also be used with non-standard voltage levels. However, this may affect the device's performance and reliability. If a non-standard voltage level is used, the device's output voltage swing may be reduced, and the receiver's sensitivity may be affected. It's essential to consult the datasheet and perform thorough testing to ensure reliable operation in such systems.
  • Yes, the MAX312EUE+ can be used in a multi-transceiver application, but it requires careful design and layout considerations. Each transceiver should have its own set of capacitors, and the capacitors should be placed close to the device. Additionally, the layout should be designed to minimize crosstalk and noise between the transceivers. It's also essential to ensure that the power supply can handle the increased current consumption of multiple transceivers.
  • To troubleshoot common issues with the MAX312EUE+, it's essential to follow a systematic approach. First, verify that the device is properly powered and that the power supply is stable. Next, check the signal integrity and ensure that the signal levels are within the specified range. Then, verify that the device is properly configured and that the baud rate and data format are correct. Finally, use a logic analyzer or oscilloscope to debug the data transmission and identify any issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX312EUE+ Overview

Use the download button to access the MAX312EUE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX31, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
