MAX312EUE+T footprint, schematic symbol and 3D model by Analog Devices

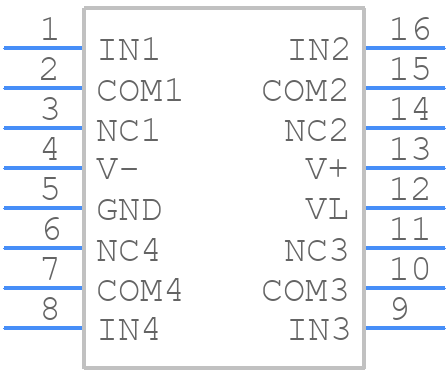

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAX312EUE+T
Part Number MAX312EUE+T
Manufacturer Analog Devices
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - U16+1
Released Date Oct 23, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MAX312EUE+T Details

Manufacturer Part Number:
MAX312EUE+T
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
16-TSSOP_4.4-4.4_MM
Package Description:
TSSOP, TSSOP16,.25
Pin Count:
16
Manufacturer Package Code:
16-TSSOP_4.4-4.4_MM
Reach Compliance Code:
Compliant
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
HTS Code:
8542.39.00.60
Date Of Intro:
1995-09-07
Manufacturer:
Analog Devices Inc
YTEOL:
9
Analog IC - Other Type:
SPST
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e3
Length:
5 mm
Moisture Sensitivity Level:
1
Neg Supply Voltage-Max (Vsup):
-20 V
Neg Supply Voltage-Min (Vsup):
-4.5 V
Neg Supply Voltage-Nom (Vsup):
-15 V
Normal Position:
NO
Number of Channels:
1
Number of Functions:
4
Number of Terminals:
16
Off-state Isolation-Nom:
65 dB
On-state Resistance Match-Nom:
0.3 Ω
On-state Resistance-Max (Ron):
10 Ω
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output:
SEPARATE OUTPUT
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Signal Current-Max:
0.1 A
Supply Current-Max (Isup):
0.005 mA
Supply Voltage-Max (Vsup):
20 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Switch-off Time-Max:
185 ns
Switch-on Time-Max:
225 ns
Switching:
BREAK-BEFORE-MAKE
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm

MAX312EUE+T Frequently Asked Questions (FAQs)

A good layout and routing practice for the MAX312EUE+T is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Additionally, use a common-mode filter or a ferrite bead to filter out high-frequency noise on the VCC and GND pins.
To ensure reliable operation of the MAX312EUE+T in high-temperature environments, make sure to follow the recommended operating temperature range of -40°C to +85°C, and consider using a heat sink or thermal pad to dissipate heat. Also, ensure that the device is properly soldered and the PCB is designed to handle thermal stresses.
The MAX312EUE+T is a high-speed transceiver that can support data rates up to 100 Mbps. However, the actual data rate achievable depends on the specific application, PCB layout, and signal quality. In general, it's recommended to follow the guidelines in the datasheet for transmitter and receiver timing, and to use a suitable clock frequency and data encoding scheme.
To troubleshoot issues with the MAX312EUE+T, start by checking the power supply and ground connections, and ensure that the device is properly configured and initialized. Use a logic analyzer or oscilloscope to monitor the signal quality and timing, and check for any signs of noise or interference. Also, review the datasheet and application notes for guidance on troubleshooting common issues.
Yes, the MAX312EUE+T can be used in a multi-point or multi-drop bus configuration, but it requires careful consideration of the bus topology, signal loading, and termination. Make sure to follow the guidelines in the datasheet for bus loading and termination, and consider using a repeater or buffer to extend the bus length or improve signal quality.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MAX312EUE+T Overview

Use the download button to access the MAX312EUE+T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MAX31, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
