MAX31341BEWC+T - Analog Devices

Description: Real Time Clock Low Current Real Time Clock with I2C Interface and Power Management

Download MAX31341BEWC+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

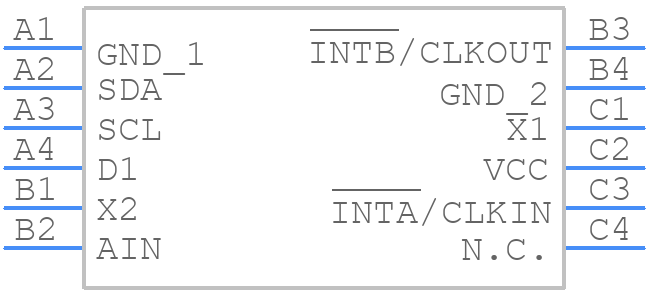

Symbol
MAX31341BEWC+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX31341BEWC+T - Analog Devices PCB footprint - BGA - BGA - W121A2-1_2020
click to zoom
3D Models
MAX31341BEWC+T - Analog Devices - 3D model - BGA - W121A2-1_2020
click to zoom

MAX31341BEWC+T Details

  • Manufacturer Part Number:

    MAX31341BEWC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-WLCSP-N/A

  • Package Description:

    WLP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Clock Frequency-Max:

    0.032 MHz

  • Information Access Method:

    SERIAL(I2C)

  • Interrupt Capability:

    Y

  • JESD-30 Code:

    R-PBGA-B12

  • Length:

    2.135 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,3X4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (words):

    64

  • Seated Height-Max:

    0.69 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.6 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time-Min:

    SECONDS

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Volatile:

    NO

  • Width:

    1.555 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

MAX31341BEWC+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX31341BEWC+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the crystal oscillator. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to minimize the length of the clock signal traces.
  • To ensure the accuracy of the RTC, it's essential to use a high-quality crystal oscillator with a low ppm error, and to calibrate the RTC regularly. Additionally, the device should be operated within the recommended temperature range, and the power supply should be stable and noise-free.
  • The maximum allowed capacitance for the crystal oscillator in the MAX31341BEWC+T is 20pF. Exceeding this value may affect the oscillator's performance and accuracy.
  • Yes, the MAX31341BEWC+T is suitable for battery-powered devices due to its low power consumption. However, it's essential to consider the power consumption of the entire system, including the microcontroller and other components, to ensure the battery life meets the requirements.
  • The MAX31341BEWC+T generates interrupts for events such as alarm matches, timer overflows, and oscillator faults. These interrupts should be handled by the microcontroller by servicing the interrupt request, clearing the interrupt flag, and taking the necessary action based on the interrupt source.
