MAX31341CETB+T - Analog Devices

Description: Real Time Clock Serial I2C 64Bytes 10-Pin TDFN T/R

Download MAX31341CETB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

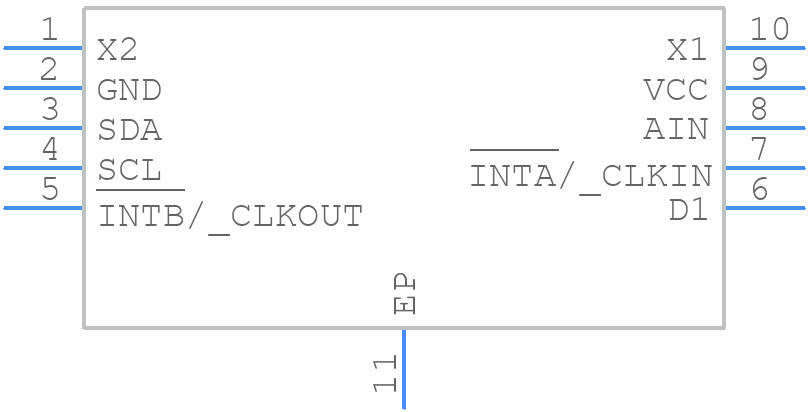

MAX31341CETB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX31341CETB+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10 TDFN 21-0137
click to zoom
3D Models
MAX31341CETB+T - Analog Devices - 3D model - Small Outline No-lead - 10 TDFN 21-0137
click to zoom

MAX31341CETB+T Details

  • Manufacturer Part Number:

    MAX31341CETB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X3X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Clock Frequency-Max:

    0.032 MHz

  • Information Access Method:

    SERIAL(I2C)

  • Interrupt Capability:

    Y

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • RAM (words):

    64

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.6 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time-Min:

    SECONDS

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Volatile:

    NO

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

MAX31341CETB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX31341CETB+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, it's recommended to place the device close to the crystal oscillator and use a low-ESR capacitor for the VCC pin.
  • To ensure the accuracy of the RTC, it's essential to use a high-quality crystal oscillator with a low ppm tolerance, and to calibrate the RTC regularly using an external time reference. Additionally, the device should be operated within the recommended temperature range, and the power supply should be stable and noise-free.
  • The maximum frequency of the clock output of the MAX31341CETB+T is 32.768 kHz, which is the typical frequency of a watch crystal oscillator. However, the device can also be configured to output other frequencies, such as 1 Hz, 4 kHz, or 8 kHz, depending on the application requirements.
  • Yes, the MAX31341CETB+T is suitable for use in battery-powered devices due to its low power consumption. The device has a typical operating current of 1.5 μA and a shutdown current of 0.1 μA, making it suitable for battery-powered applications where power consumption is a concern.
  • The MAX31341CETB+T can be interfaced with a microcontroller using a standard I2C or SPI interface. The device has a dedicated I2C or SPI interface pin, and the communication protocol is compatible with most microcontrollers. The microcontroller can read and write data to the device's registers, and can also use the device's interrupt output to trigger events.
