Part Image

MAX31342EWA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX31342EWA+ - REAL TIME CLOCK, -40 TO 85DEG C

Download MAX31342EWA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

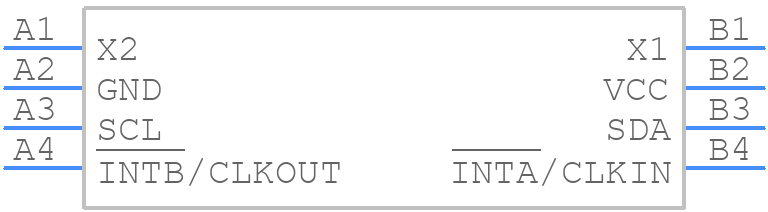

Symbol
MAX31342EWA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX31342EWA+ - Analog Devices PCB footprint - BGA - BGA - MAX31342EWA+T
click to zoom
3D Models
MAX31342EWA+ - Analog Devices - 3D model - BGA - MAX31342EWA+T
click to zoom

MAX31342EWA+ Details

  • Manufacturer Part Number:

    MAX31342EWA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-WLCSP-N/A

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-WLCSP-N/A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-04-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

MAX31342EWA+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX31342EWA+ is to keep the analog and digital grounds separate, use a solid ground plane, and keep the power supply decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device's exposed pad should be connected to the ground plane.
  • To optimize the performance of the MAX31342EWA+ in noisy environments, use a low-pass filter on the input signals, use a shielded cable for the input signals, and keep the device away from high-frequency sources. Additionally, use a common-mode choke on the power supply lines and decouple the power supply with a 10uF capacitor.
  • The maximum operating temperature range for the MAX31342EWA+ is -40°C to +125°C. However, the device's performance may degrade at temperatures above 85°C, and it is recommended to operate the device within the -40°C to 85°C range for optimal performance.
  • The MAX31342EWA+ can be programmed using the SPI interface. The device has a set of registers that can be accessed and modified using the SPI interface. The programming sequence and register settings can be found in the device's datasheet and programming guide. Additionally, Analog Devices provides a software development kit (SDK) that includes example code and a GUI-based programming tool.
  • The typical power consumption of the MAX31342EWA+ is around 10mA at 3.3V supply voltage. However, the power consumption can vary depending on the operating frequency, input signal amplitude, and output load. The device's power consumption can be estimated using the power consumption calculator provided in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX31342EWA+ Overview

Use the download button to access the MAX31342EWA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX31, or try a keyword search, such as Timers or RTCs
