MAX313CSE+ - Analog Devices

Description: MAX313CSE+, Analogue SPST Switch Quad SPST, 12 V, 15 V, 18 V, 24 V, 28 V, 5 V, 9 V, 16-Pin, SOIC, 4

Download MAX313CSE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

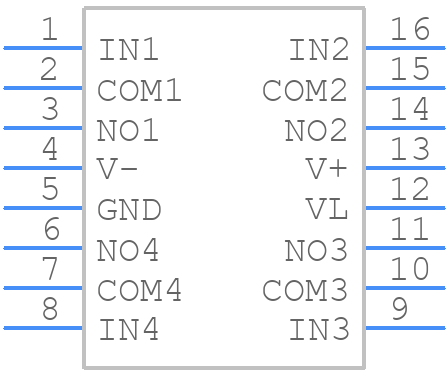

Symbol
MAX313CSE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX313CSE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Narrow SO
click to zoom
3D Models
MAX313CSE+ - Analog Devices - 3D model - Small Outline Packages - 16 Narrow SO
click to zoom

MAX313CSE+ Details

  • Manufacturer Part Number:

    MAX313CSE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, MS-012AC, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1995-09-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -20 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    65 dB

  • On-state Resistance Match-Nom:

    0.3 Ω

  • On-state Resistance-Max (Ron):

    10 Ω

  • Operating Temperature-Max:

    70 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.1 A

  • Supply Current-Max (Isup):

    0.005 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    235 ns

  • Switch-on Time-Max:

    275 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX313CSE+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX313CSE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the crystal oscillator. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the clock traces as short as possible.
  • To ensure accuracy and stability, it's essential to use a high-quality crystal oscillator with a low equivalent series resistance (ESR) and a high Q-factor. Additionally, the crystal oscillator should be driven by a CMOS output, and the clock output should be loaded with a low-capacitance load to minimize jitter.
  • The maximum frequency deviation of the MAX313CSE+ over temperature and voltage is typically ±100 ppm over the entire operating range of -40°C to +85°C and 2.7V to 5.5V. However, this value can vary depending on the specific application and operating conditions.
  • Yes, the MAX313CSE+ can be used in a battery-powered device. It has a low power consumption of 1.5mA (typical) and a shutdown mode that reduces the current consumption to less than 1µA. Additionally, the device has a power-saving feature that allows it to automatically switch to a low-power mode when the clock output is not in use.
  • To troubleshoot issues with the MAX313CSE+, start by checking the power supply voltage, crystal oscillator frequency, and clock output load. Verify that the device is properly configured and that the clock output is not overloaded. Use an oscilloscope to measure the clock output waveform and frequency. If the issue persists, consult the datasheet and application notes for further guidance.
