MAX31723MUA+ - Analog Devices

Description: Digital Thermometers and Thermostats with SPI/3-Wire Interface

Download MAX31723MUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

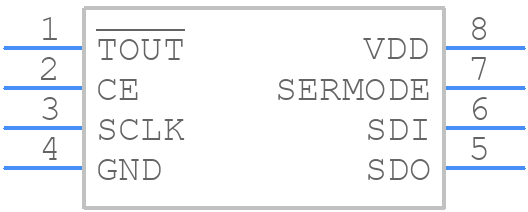

MAX31723MUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX31723MUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 uSOP
click to zoom
3D Models
MAX31723MUA+ - Analog Devices - 3D model - Small Outline Packages - 8 uSOP
click to zoom

MAX31723MUA+ Details

  • Manufacturer Part Number:

    MAX31723MUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    UMAX-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2010-11-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    0.5 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    0.85 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    1.2 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    3-WIRE INTERFACE/SPI INTERFACE

  • Output Voltage-Max:

    2.6 V

  • Output Voltage-Min:

    0.4 V

  • Package Equivalence Code:

    TSSOP8,.2

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.7 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER
