MAX31730ATC+ - Analog Devices

Description: Board Mount Temperature Sensors TRIPLE REMOTE TEMP SENSOR TDFN

Download MAX31730ATC+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

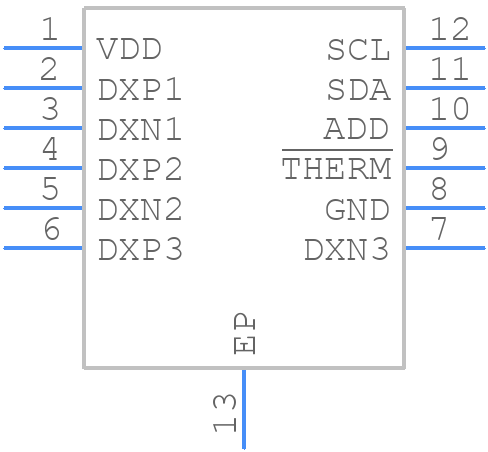

Symbol
MAX31730ATC+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX31730ATC+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - TD1233+1C_2020
click to zoom
3D Models
MAX31730ATC+ - Analog Devices - 3D model - Small Outline No-lead - TD1233+1C_2020
click to zoom

MAX31730ATC+ Details

  • Manufacturer Part Number:

    MAX31730ATC+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, TDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2014-03-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    2.5 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    0.75 mm

  • Body Length or Diameter:

    3 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    12

  • Operating Current-Max:

    1.2 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER

MAX31730ATC+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX31730ATC+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 1uF to 10uF, while the output capacitor should be a low-ESR ceramic or tantalum capacitor with a value between 1uF to 22uF. The capacitor values and types should be chosen based on the specific application requirements and the device's operating frequency.
  • The MAX31730ATC+ has an operating ambient temperature range of -40°C to +125°C, but the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • The MAX31730ATC+ has a power-on reset (POR) circuit that ensures the device is properly powered up and powered down. The device should be powered up and powered down slowly (typically within 10ms to 100ms) to prevent voltage spikes and ensure proper operation.
  • The recommended input voltage range for the MAX31730ATC+ is 2.7V to 5.5V, but the device can operate with input voltages as low as 2.5V and as high as 6V. However, operating the device outside the recommended input voltage range may affect its performance and reliability.
