MAX31785AETL+T - Analog Devices

Description: Motor/Motion/Ignition Controllers & Drivers 6 CHANNEL INTELLIGENT FAN CONTROLLER T

Download MAX31785AETL+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

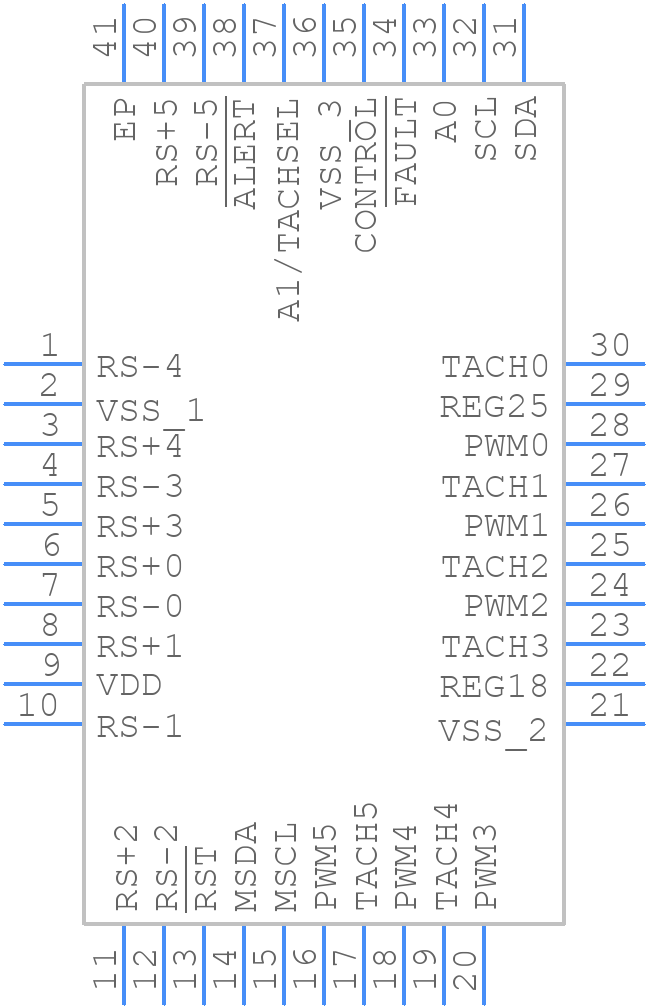

MAX31785AETL+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX31785AETL+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T4066+2
click to zoom
3D Models
MAX31785AETL+T - Analog Devices - 3D model - Quad Flat No-Lead - T4066+2
click to zoom

MAX31785AETL+T Details

  • Manufacturer Part Number:

    MAX31785AETL+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    40-LFCSP-6X6X0.75

  • Package Description:

    TQFN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    40-LFCSP-6X6X0.75

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2010-12-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

MAX31785AETL+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX31785AETL+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value of at least 10uF, while the output capacitor should be a low-ESR ceramic capacitor with a value of at least 22uF. The capacitor values and types should be chosen based on the specific application requirements and the device's operating frequency.
  • The MAX31785AETL+T has an operating ambient temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including automotive and industrial systems.
  • The MAX31785AETL+T has a specific power-up and power-down sequence that should be followed to ensure proper operation. The device should be powered up by applying the input voltage to the VIN pin, followed by the enable signal to the EN pin. When powering down, the enable signal should be removed first, followed by the input voltage.
  • The MAX31785AETL+T has a maximum output current capability of 5A, making it suitable for use in applications that require high current output, such as powering high-current loads or charging batteries.
