MAX31785ETL+T - Analog Devices

Description: Motor/Motion/Ignition Controllers & Drivers 6Ch Intelligent Fan Controller

Download MAX31785ETL+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

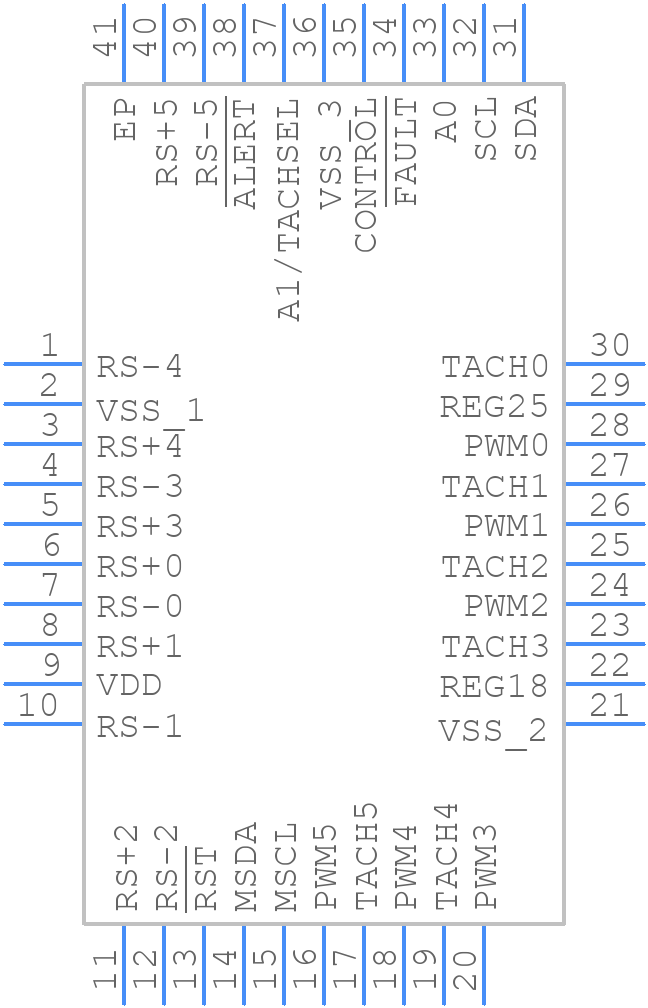

MAX31785ETL+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX31785ETL+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T4066+2
click to zoom
3D Models
MAX31785ETL+T - Analog Devices - 3D model - Quad Flat No-Lead - T4066+2
click to zoom

MAX31785ETL+T Details

  • Manufacturer Part Number:

    MAX31785ETL+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    40-LFCSP-6X6X0.75

  • Pin Count:

    40

  • Manufacturer Package Code:

    40-LFCSP-6X6X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2010-12-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

MAX31785ETL+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX31785ETL+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value of at least 10uF, while the output capacitor should be a low-ESR ceramic or tantalum capacitor with a value of at least 22uF. The capacitor values and types should be chosen based on the specific application requirements and operating conditions.
  • The MAX31785ETL+T is rated for operation over a temperature range of -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. A derating curve is provided in the datasheet to help determine the maximum ambient temperature for a given power dissipation.
  • The MAX31785ETL+T has a built-in overcurrent protection feature that can be enabled by connecting the OCSET pin to a resistor divider network. The resistor values should be chosen based on the desired overcurrent threshold and the device's input voltage.
  • Yes, the MAX31785ETL+T is qualified for use in high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard and is available in a variety of package options, including a lead-free, RoHS-compliant package.
