MAX31911AUI+T - Analog Devices

Description: Sensor Interface Low Power Industrial Octal Digital Input Translator/Serializer T&R

Download MAX31911AUI+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

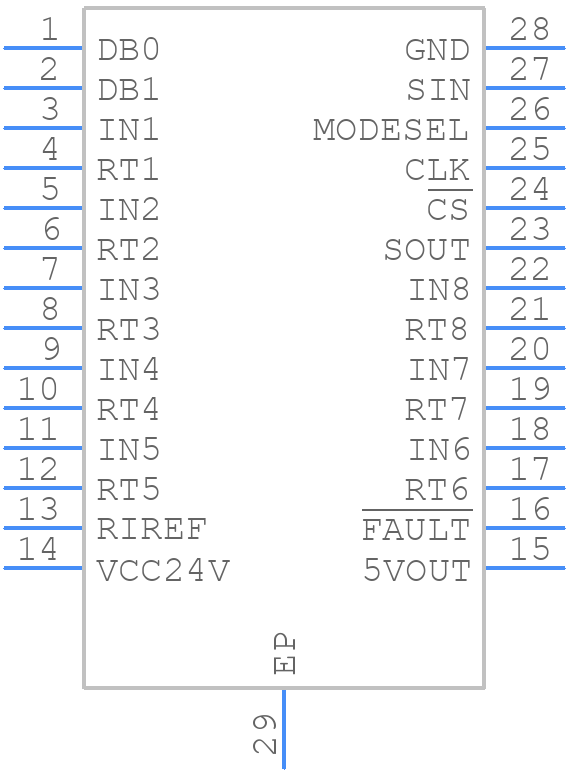

Symbol
MAX31911AUI+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX31911AUI+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U28E+4
click to zoom
3D Models
MAX31911AUI+T - Analog Devices - 3D model - Small Outline Packages - U28E+4
click to zoom

MAX31911AUI+T Details

  • Manufacturer Part Number:

    MAX31911AUI+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-TSSOP_4.4_EP-4.4_MM

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-TSSOP_4.4_EP-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2012-09-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL I/P MODULE

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    7 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX31911AUI+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX31911AUI+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to avoid routing digital signals under the device.
  • The thermal shutdown feature of the MAX31911AUI+T is designed to protect the device from overheating. If the device exceeds the maximum junction temperature, it will shut down. To handle this, ensure good thermal design, use a heat sink if necessary, and monitor the device temperature through the TSD pin. If a shutdown occurs, wait for the device to cool down before re-applying power.
  • The recommended input common-mode voltage range for the MAX31911AUI+T is between -0.1V and VCC - 1.5V. Operating outside this range may affect the device's performance and accuracy.
  • Calibration of the MAX31911AUI+T involves adjusting the internal offset and gain to match the specific application requirements. This can be done through the device's calibration pins (CAL_IN and CAL_OUT) and by following the calibration procedure outlined in the datasheet.
  • The maximum cable length supported by the MAX31911AUI+T depends on the specific application and the type of cable used. As a general guideline, the device can support cable lengths up to 100 meters. However, it's recommended to consult the datasheet and perform tests to determine the maximum cable length for a specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX31911AUI+T Overview

Use the download button to access the MAX31911AUI+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX31, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
